CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI^TM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI^TM 2.1.

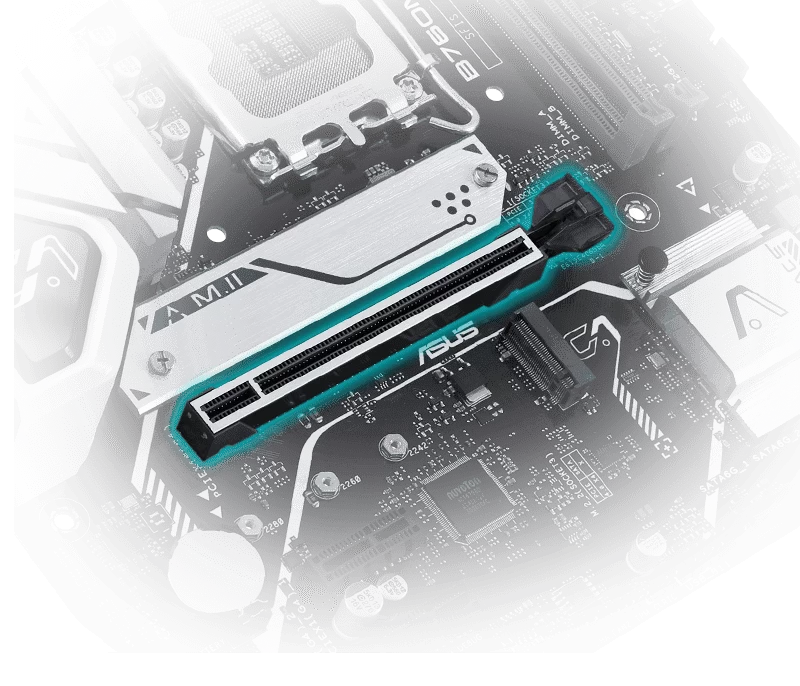

Expansion Slots

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
2 x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)

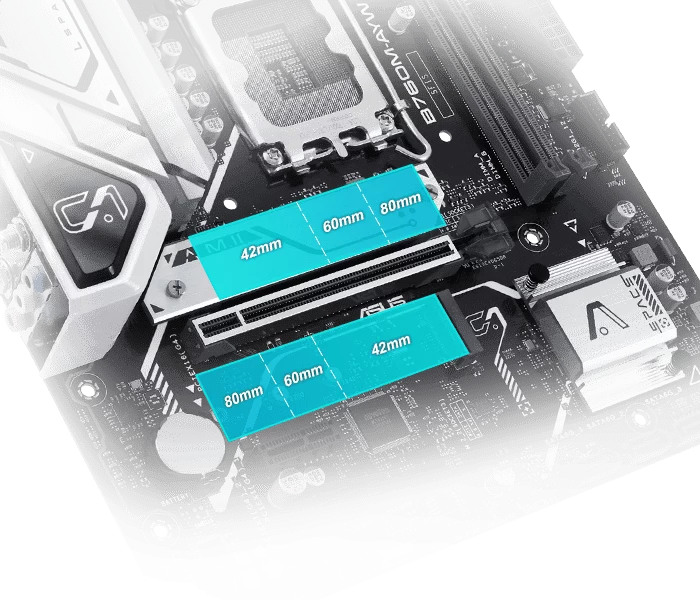

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

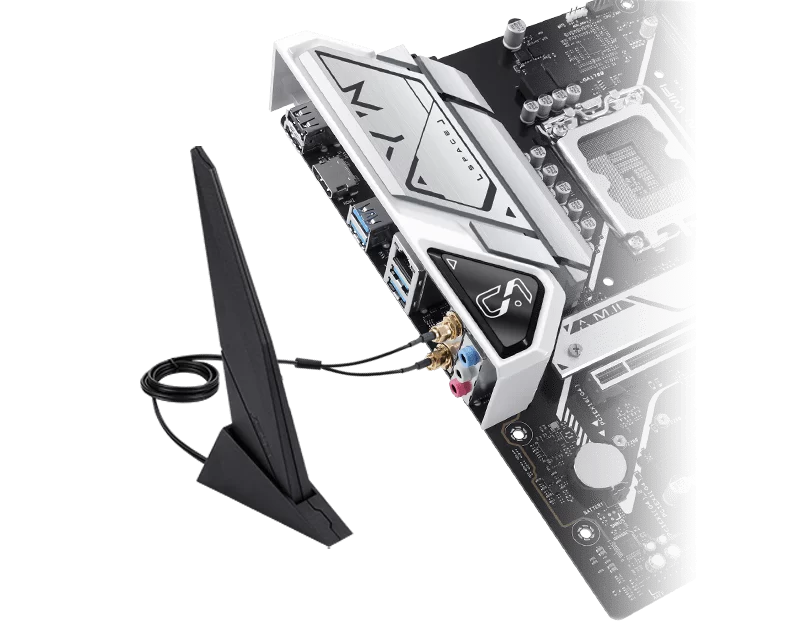

Wireless & Bluetooth

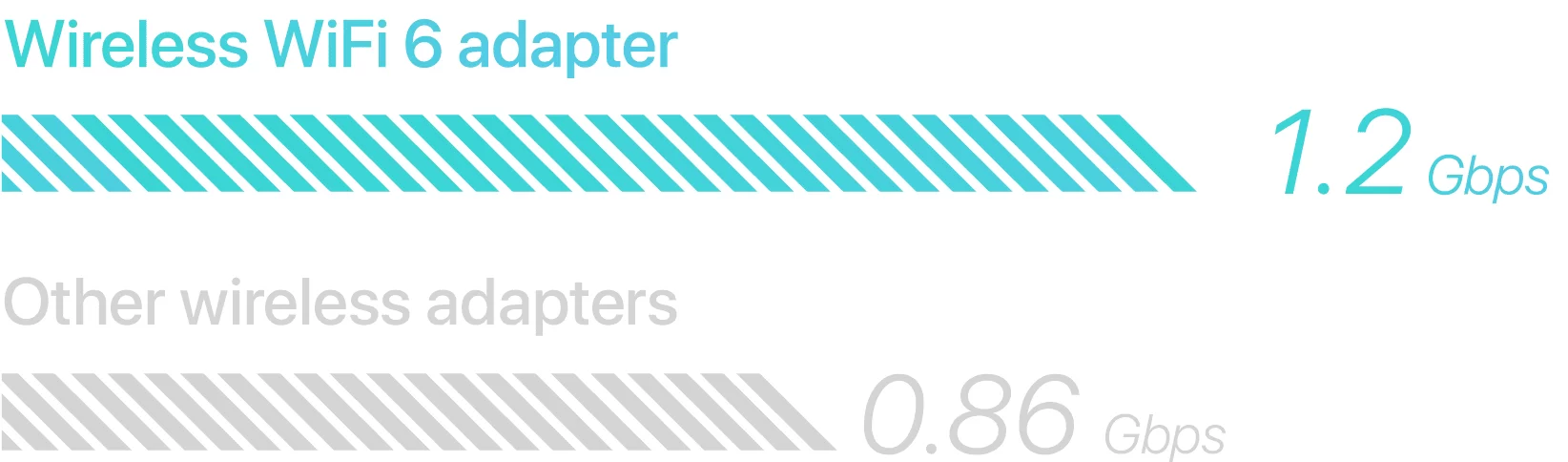

Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth^® v5.3*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB

Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

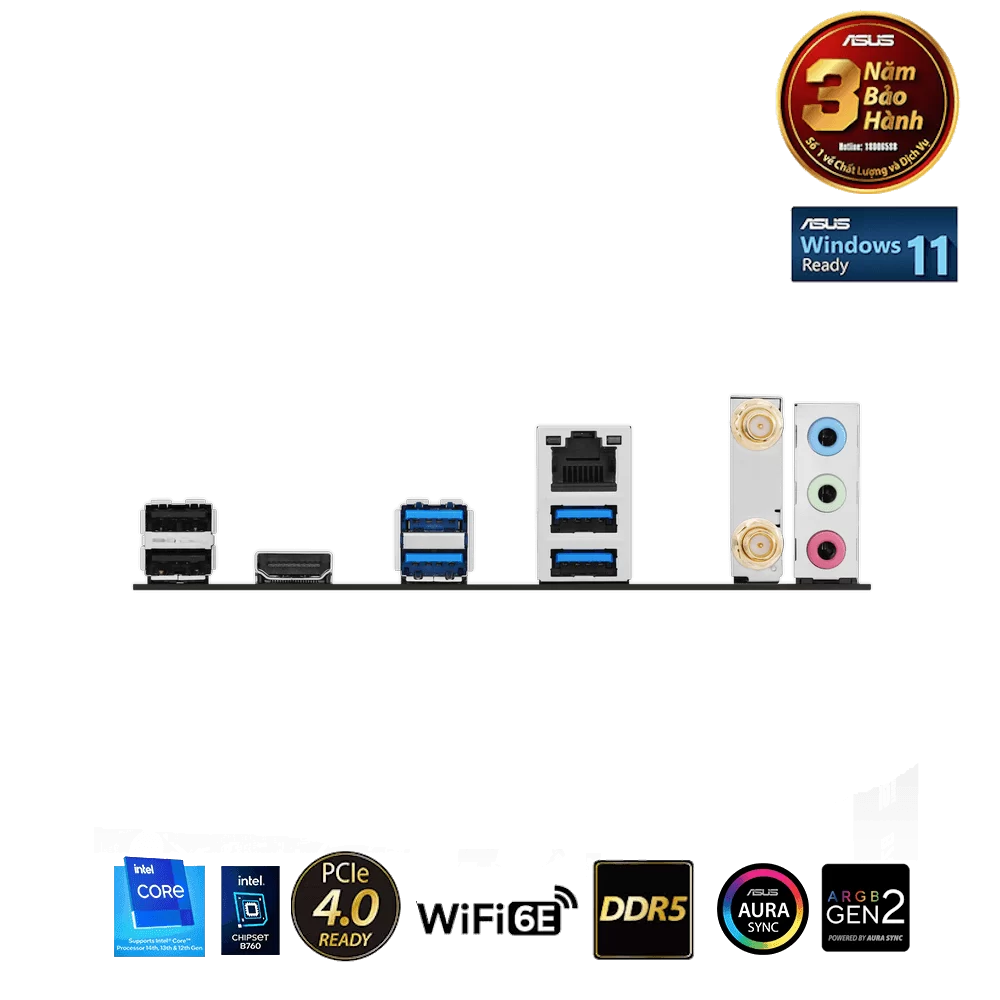

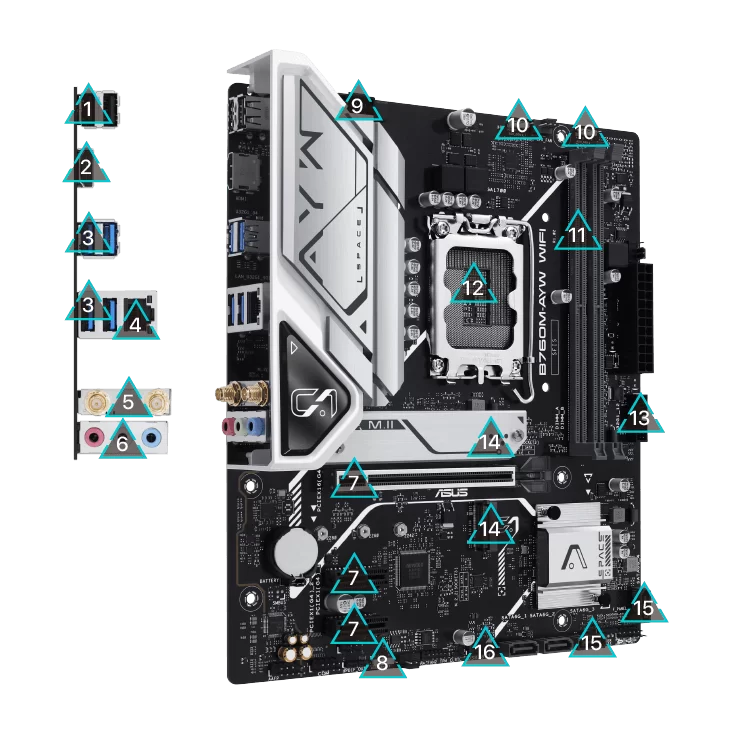

Back Panel I/O Ports

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI^TM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header

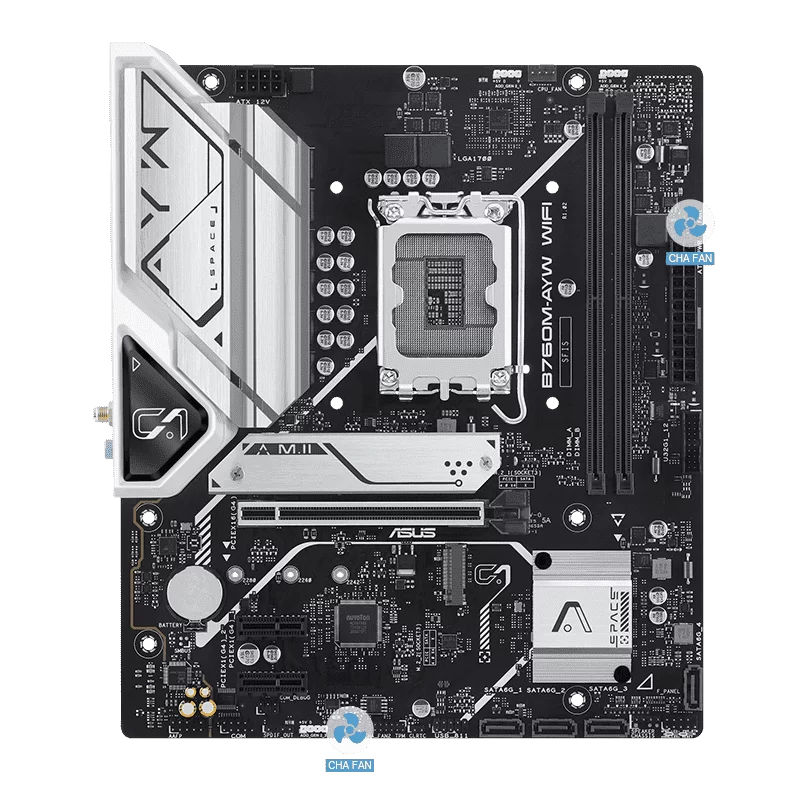

2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous

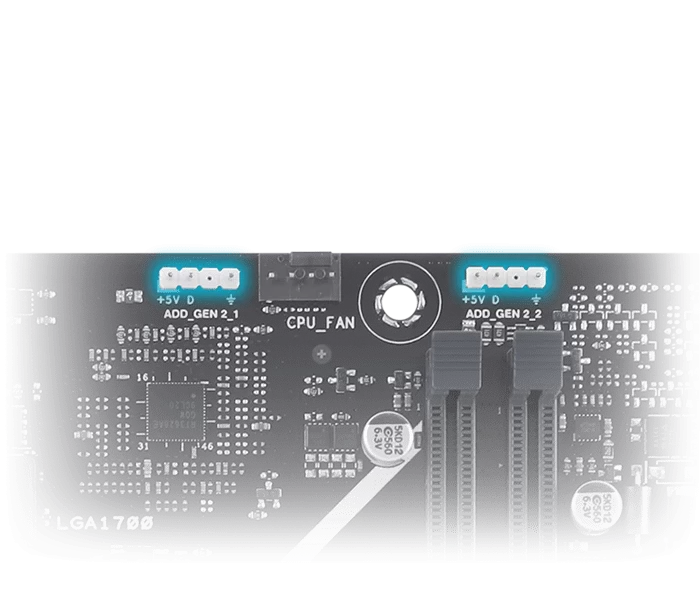

3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core +
– Stainless-Steel Back I/O
ASUS Q-Design

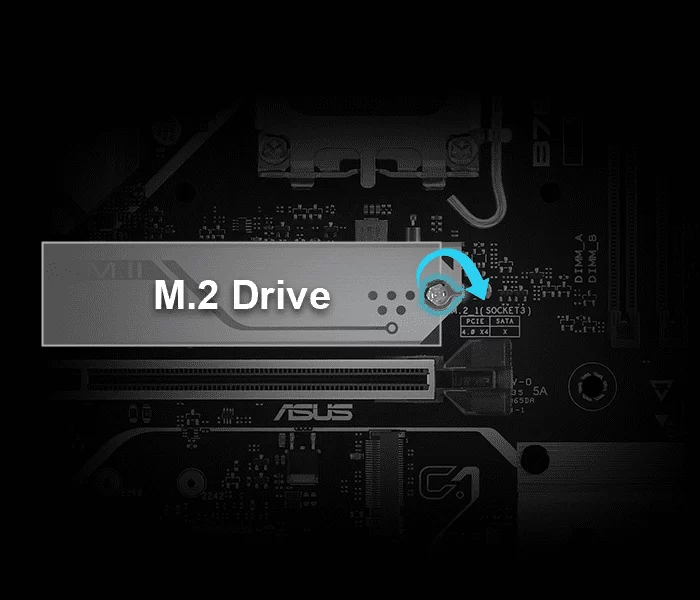

– M.2 Q-Latch
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS EZ DIY

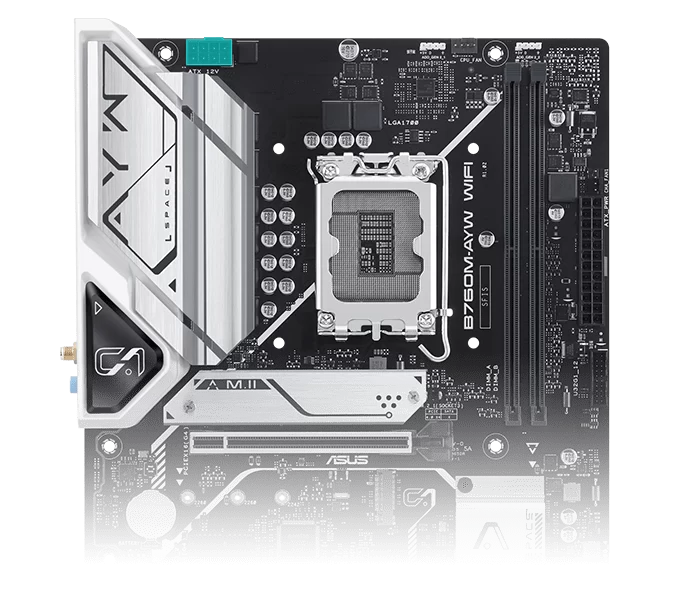

– ProCool

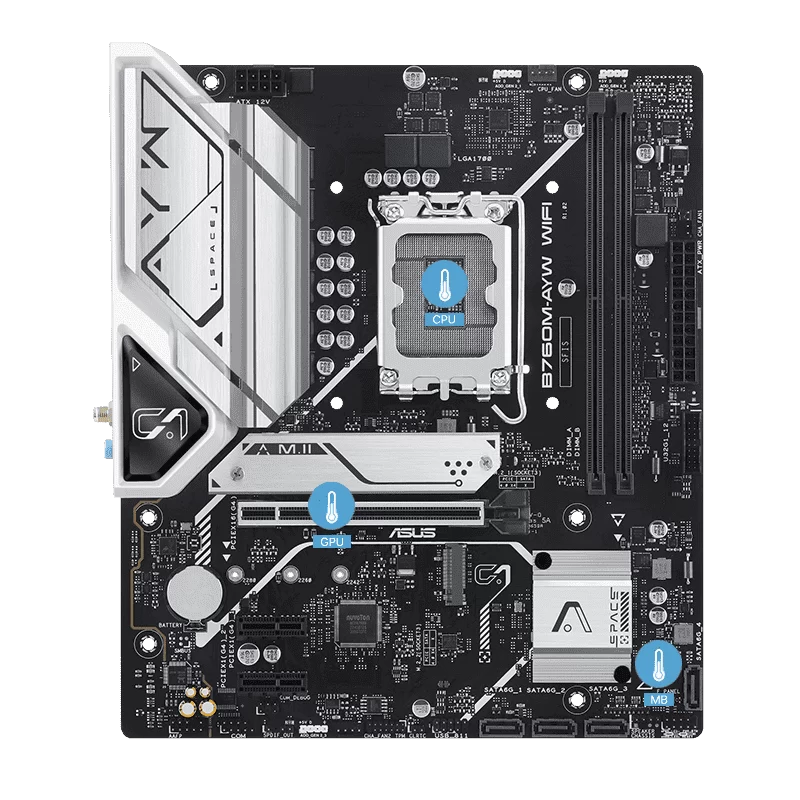

ASUS Thermal Solution

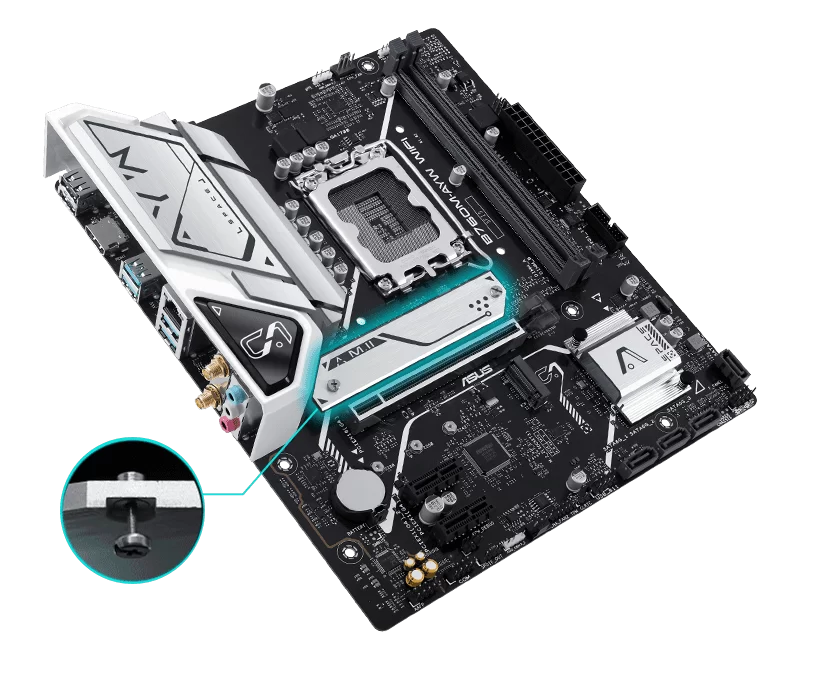

– M.2 heatsink

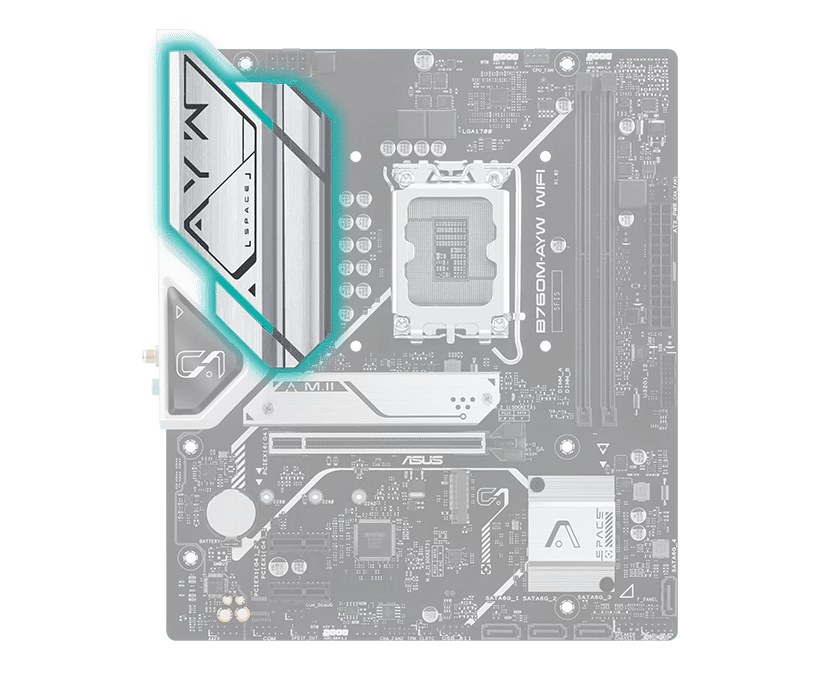

– VRM heatsink design

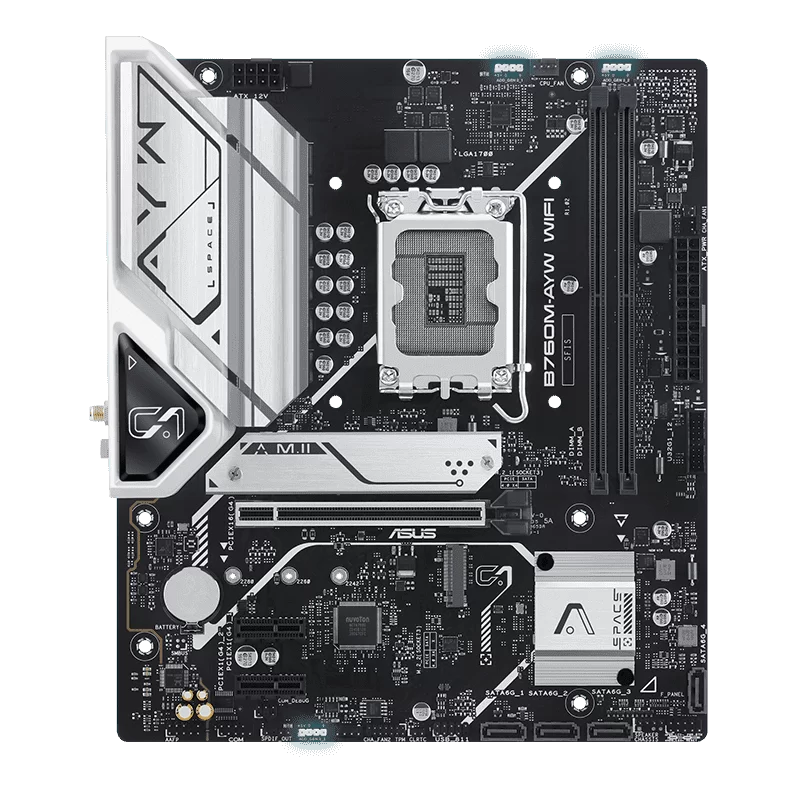

Aura Sync
– Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

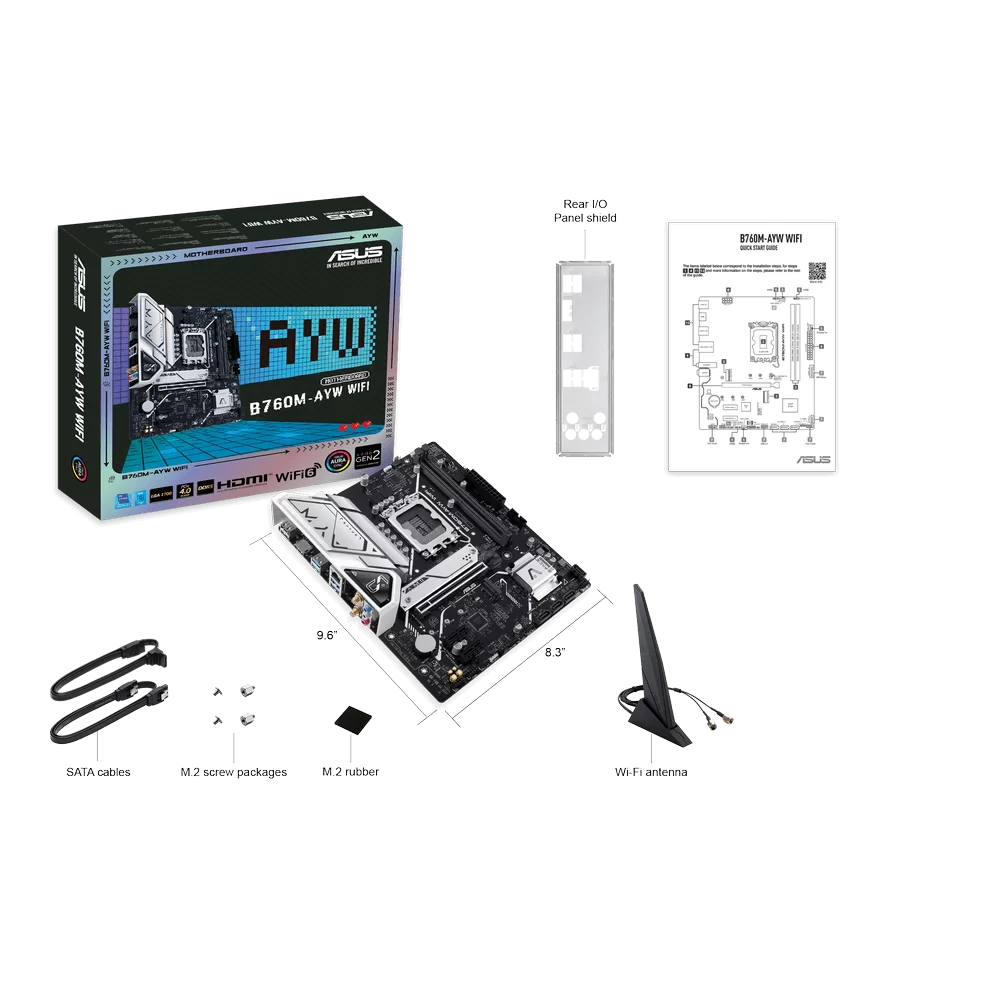

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas

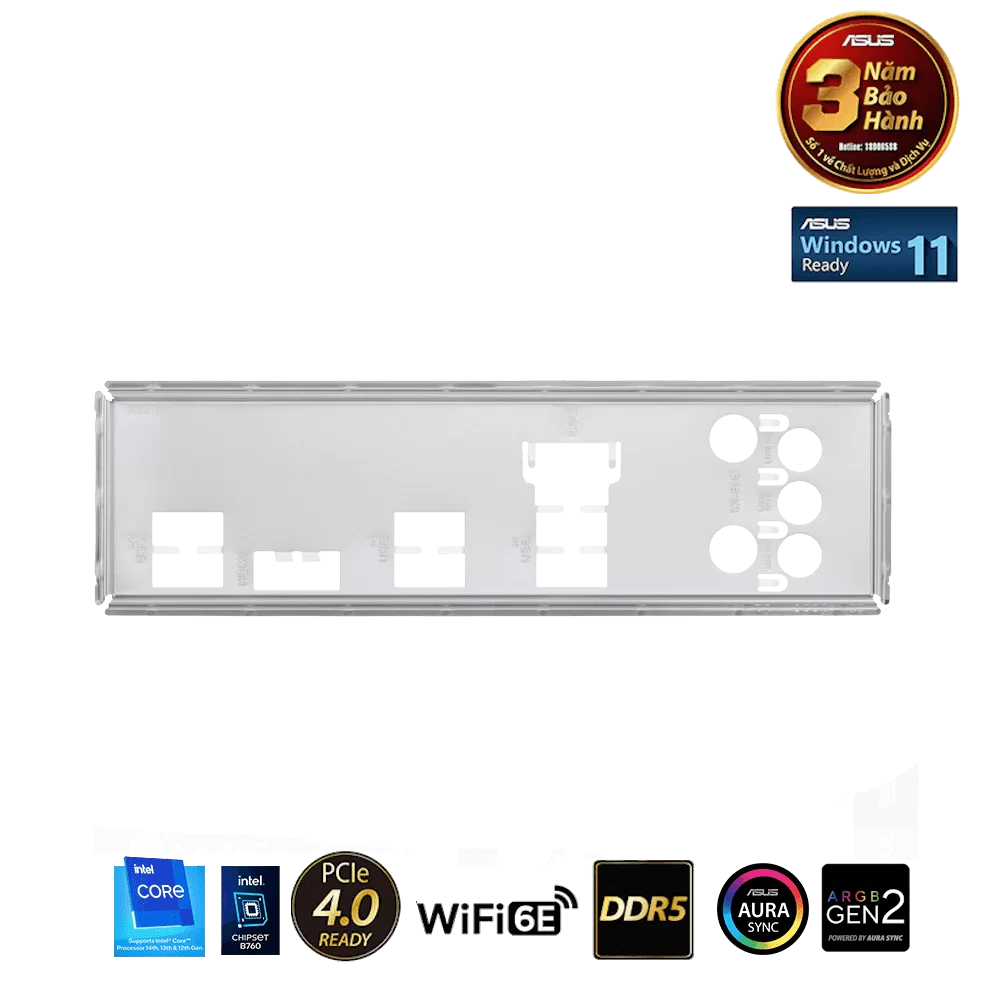

1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
