GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard
GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 2
GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 3
GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard - Ảnh 4

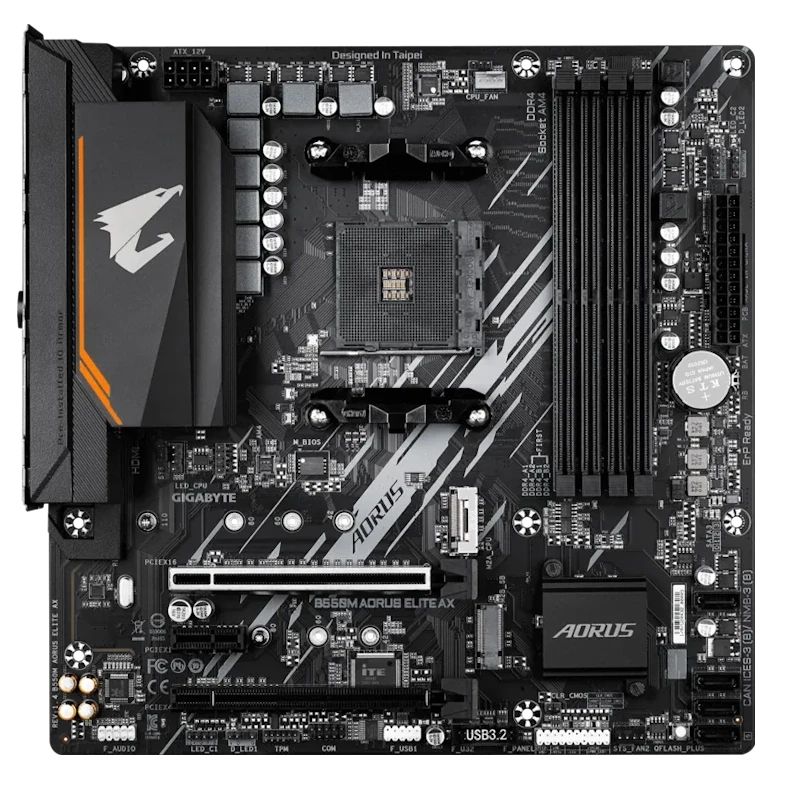

B550M AORUS ELITE AX pic 1

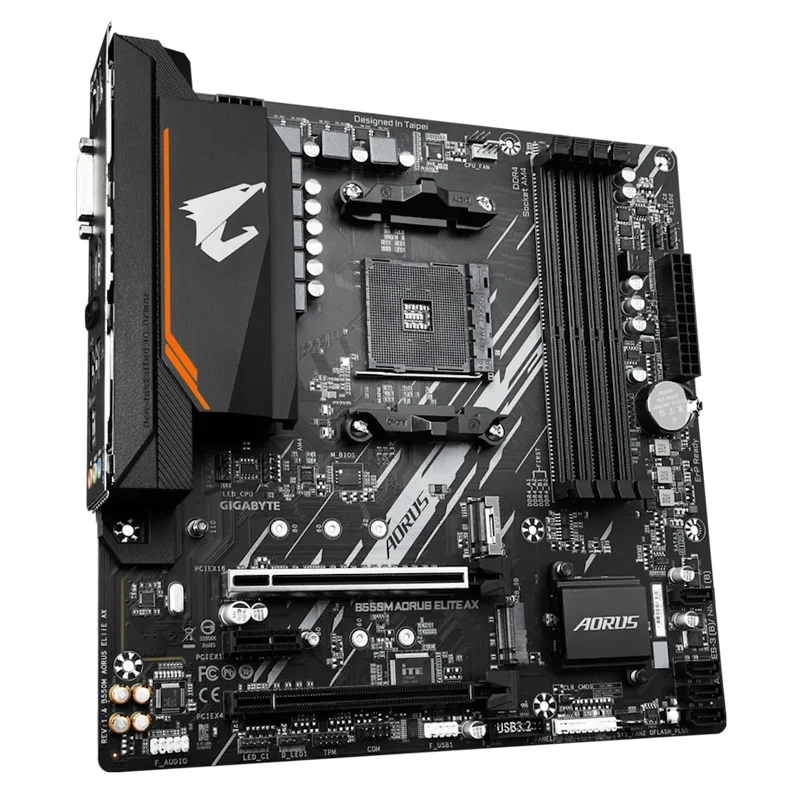

B550M AORUS ELITE AX pic 2
B550M AORUS ELITE AX pic 3

GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard

0.0 (0 đánh giá) | Đã bán 7
Còn hàng
3.190.000 ₫
3.490.000 ₫ -9%

Còn hàng (có thể đặt hàng trước)

Số lượng:
Thanh toán an toàn & bảo mật thông tin khách hàng

Cam kết hàng chính hãng

100% hàng chính hãng

Đổi trả dễ dàng

Trong 7 ngày

Bảo hành chính hãng

Giao hàng nhanh

Toàn quốc

click01

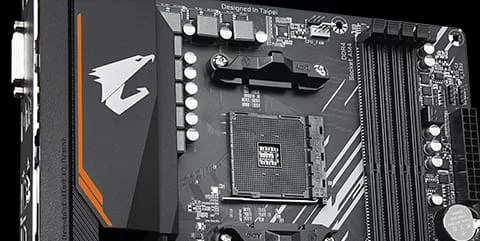

TỔNG QUAN THÔNG SỐ KỸ THUẬT

click02
HIỆU SUẤT

click04

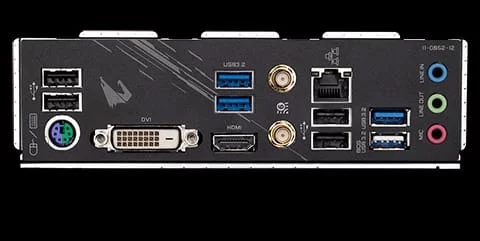

KẾT NỐI

click06

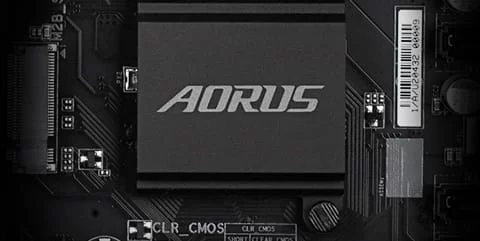

LÀM MÁT

click05
LIGHTING

click03
ÂM THANH

click07

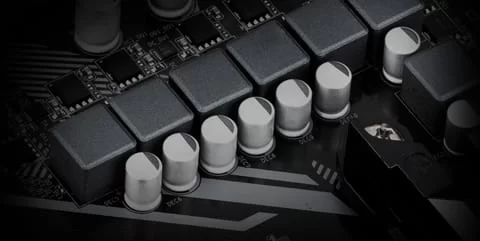

ĐỘ BỀN

click08
GIGABYTE EXCELLENCE

  • Hỗ trợ bộ vi xử lý AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 và Ryzen™ 3000 G-Series
  • ECC kênh đôi/Không ECC DDR4 không có bộ đệm, 4 DIMM
  • Giải pháp VRM kỹ thuật số thuần túy 5+3 pha với MOSFET có điện trở dẫn thấp (RDS(on))
  • Khe cắm PCIe 4.0 Ultra Durable™ x16
  • Hai khe cắm NVMe PCIe 4.0/3.0 M.2 siêu nhanh
  • Wi-Fi 6E 802.11ax và Bluetooth 5.3 tích hợp sẵn
  • Tụ điện âm thanh chất lượng cao và bộ lọc nhiễu âm thanh
  • Mạng LAN GbE Realtek với quản lý băng thông
  • Hỗ trợ HDMI và DVI phía sau
  • RGB FUSION 2.0 hỗ trợ LED RGB

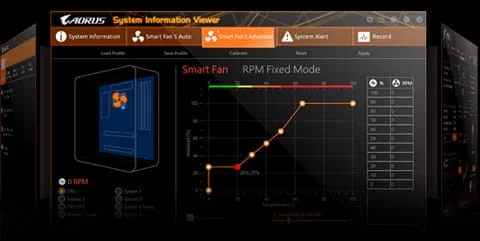

  • Quạt thông minh Smart Fan 5
  • Q-Flash Plus cập nhật BIOS không cần CPU
  • Thiết kế điện trở chống lưu huỳnh
Main Product


specline 1920

Solid Pin Power Connector
DVI
HDMI
Wi-Fi 6E 802.11ax
WIFI EZ-Plug
Realtek GbE LAN
Ultra Durable PCIe Slot
• PCIe® 4.0 Slot
• Running 1* x16
Audio Noise Guard
High-End Audio Capacitors
RGB FUSION 2.0
Addressable LED Header*2
RGB LED Header*3

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Enlarged MOSFET Heatsink
Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel DDR4, 4 DIMMs
Dual M.2 Connectors
1. 22110 M.2
• PCIe 4.0 M.2 Connector
• NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2. 2280 M.2
• NVMe PCIe 3.0 x2 and SATA Mode (from Chipset)
Q-Flash Plus Button
Smart Fan 5 + FAN STOP
• 3 Fan Connectors
• 5 Temperature Sensors



B550M AORUS ELITE AX pic 1
Model
B550M AORUS ELITE AX (rev. 1.4)
CPU
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset

AMD B550

Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.4
  3. Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    * Actual support may vary by AMD CPU’s specification.
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode
Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB Port
CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 1 x CPU cooler LED strip/RGB LED strip header
  8. 2 x M.2 Socket 3 connectors
  9. 4 x SATA 6Gb/s connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

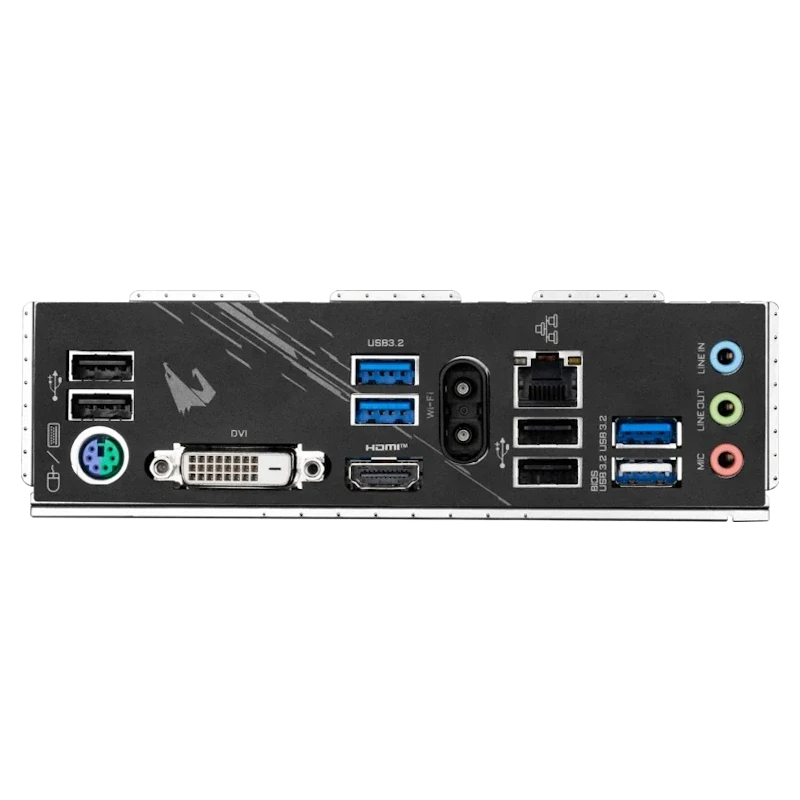

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port (Note)
  3. 1 x HDMI port (Note)
  4. 2 x SMA antenna connectors (2T2R)
  5. 4 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
    * Service discontinued as a result of contract termination by the software provider.
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Bảo hành 3 năm
click01
TỔNG QUAN THÔNG SỐ KỸ THUẬT

click02
HIỆU SUẤT

click04
KẾT NỐI

click06
LÀM MÁT

click05
LIGHTING

click03
ÂM THANH

click07
ĐỘ BỀN

click08
GIGABYTE EXCELLENCE

  • Hỗ trợ bộ vi xử lý AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 và Ryzen™ 3000 G-Series
  • ECC kênh đôi/Không ECC DDR4 không có bộ đệm, 4 DIMM
  • Giải pháp VRM kỹ thuật số thuần túy 5+3 pha với MOSFET có điện trở dẫn thấp (RDS(on))
  • Khe cắm PCIe 4.0 Ultra Durable™ x16
  • Hai khe cắm NVMe PCIe 4.0/3.0 M.2 siêu nhanh
  • Wi-Fi 6E 802.11ax và Bluetooth 5.3 tích hợp sẵn
  • Tụ điện âm thanh chất lượng cao và bộ lọc nhiễu âm thanh
  • Mạng LAN GbE Realtek với quản lý băng thông
  • Hỗ trợ HDMI và DVI phía sau
  • RGB FUSION 2.0 hỗ trợ LED RGB
  • Quạt thông minh Smart Fan 5
  • Q-Flash Plus cập nhật BIOS không cần CPU
  • Thiết kế điện trở chống lưu huỳnh
Main Product

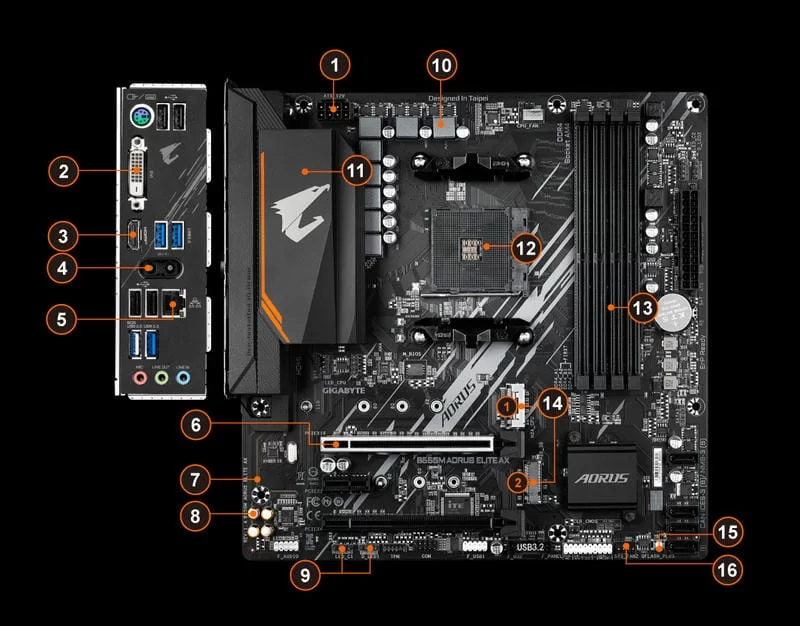

spec small
1
Solid Pin Power Connector
2
DVI
3
HDMI
4
Wi-Fi 6E 802.11ax
WIFI EZ-Plug
5
4 Realtek GbE LAN
6
Ultra Durable PCIe Slot

  • PCIe® 4.0 Slot
  • Running 1* x16
7
Audio Noise Guard
8
High-End Audio Capacitors
9
RGB FUSION 2.0

  • Addressable LED Header*2
  • RGB LED Header*3
10
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
11
Enlarged MOSFET Heatsink
12
Supports 3rd Gen AMD Ryzen™ Processors
13
Dual Channel DDR4, 4 DIMMs
14
Dual M.2 Connectors

  • 22110 M.2
    • PCIe 4.0 M.2 Connector
    • NVMe PCIe 4.0/3.0 x4 và SATA Mode (from CPU)
  • 2280 M.2
    • NVMe PCIe 3.0 x2 và SATA Mode (from Chipset)
15
Q-Flash Plus Button
16
Smart Fan 5 + FAN STOP

  • 3 Fan Connectors
  • 5 Temperature Sensors



B550M AORUS ELITE AX pic 1
Model
B550M AORUS ELITE AX (rev. 1.4)
CPU
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset

AMD B550

Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.4
  3. Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    * Actual support may vary by AMD CPU’s specification.
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode
Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB Port
CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 1 x CPU cooler LED strip/RGB LED strip header
  8. 2 x M.2 Socket 3 connectors
  9. 4 x SATA 6Gb/s connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port (Note)
  3. 1 x HDMI port (Note)
  4. 2 x SMA antenna connectors (2T2R)
  5. 4 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
    * Service discontinued as a result of contract termination by the software provider.
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Bảo hành 3 năm

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và đã mua sản phẩm này mới có thể để lại đánh giá.

Đang tải đánh giá...

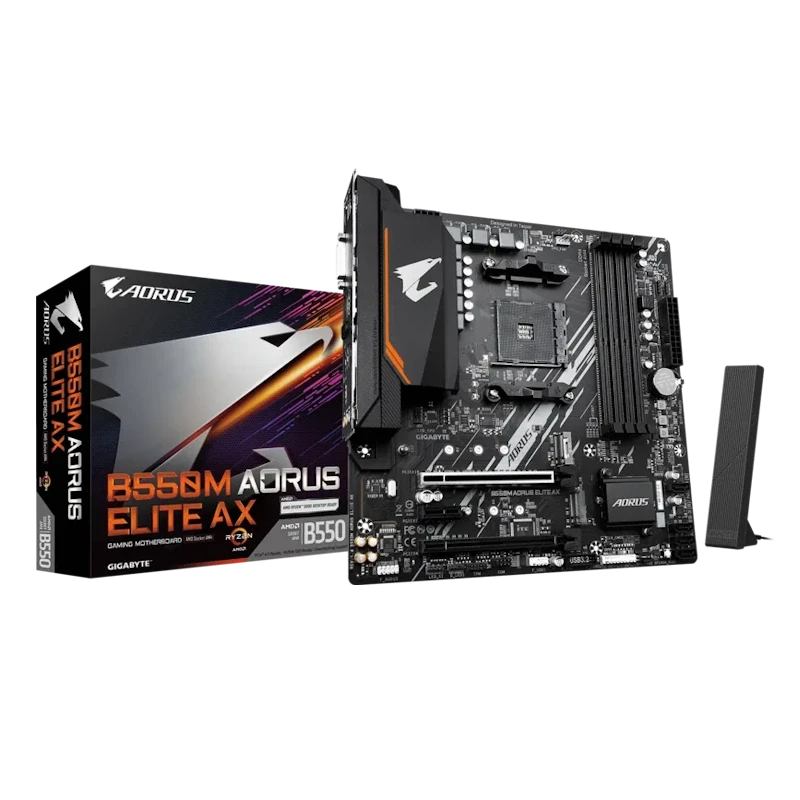

Đánh giá GIGABYTE B550M AORUS ELITE AX (rev. 1.x) Mainboard

0.0 /5
0 khách hài lòng
Ai là Khách hàng hài lòng? Gồm các khách hàng đã đánh giá tốt và khách hàng mua hàng nhưng chưa đánh giá.
0 đánh giá
  • 5
    0%
  • 4
    0%
  • 3
    0%
  • 2
    0%
  • 1
    0%

Lọc đánh giá

  • Tất cả
  • 5 ★
  • 4 ★
  • 3 ★
  • 2 ★
  • 1 ★

Tân Thành Danh hỗ trợ bạn

Hotline Mua Hàng

0901 343 881

Tư vấn kỹ thuật

0901 343 881

Showroom

61CT Tam Đảo, Cư Xá Bắc Hải Phường Hòa Hưng, TP.HCM

Sản phẩm tương tự

-20%
MSI B760M PROJECT ZERO DDR5 Mainboard

MSI B760M PROJECT ZERO DDR5 Mainboard

Giá gốc là: 6.200.000 ₫.Giá hiện tại là: 4.990.000 ₫.
-13%
ASUS B760M-AYW WIFI Mainboard

ASUS B760M-AYW WIFI Mainboard

Giá gốc là: 3.790.000 ₫.Giá hiện tại là: 3.290.000 ₫.
-11%
ASUS ROG STRIX B650E-I GAMING WIFI - iTX Mainboard

ASUS ROG STRIX B650E-I GAMING WIFI – iTX Mainboard

Giá gốc là: 8.990.000 ₫.Giá hiện tại là: 7.990.000 ₫.
-15%
ASUS PRIME H610M-E D4 Mainboard

ASUS PRIME H610M-E D4 Mainboard

Giá gốc là: 2.690.000 ₫.Giá hiện tại là: 2.290.000 ₫.
-8%
ASUS Pro WS TRX50-SAGE WIFI Mainboard - Socket sTR5, Wifi 7, PCIe 5.0, CEB Form Factor

ASUS Pro WS TRX50-SAGE WIFI Mainboard – Socket sTR5, Wifi 7, PCIe 5.0, CEB Form Factor

Giá gốc là: 24.990.000 ₫.Giá hiện tại là: 22.990.000 ₫.
-20%
ASUS PRIME B650M-A WIFI-CSM Mainboard

ASUS PRIME B650M-A WIFI-CSM Mainboard

Giá gốc là: 4.990.000 ₫.Giá hiện tại là: 3.990.000 ₫.
GIGABYTE TRX50 AERO D sTR5, E-ATX Mainboard - DDR5, PCIe 5.0 M.2, PCIe 5.0, USB4 Type-C, Wi-Fi 7, Marvell 10GbE

GIGABYTE TRX50 AERO D sTR5, E-ATX Mainboard – DDR5, PCIe 5.0 M.2, PCIe 5.0, USB4 Type-C, Wi-Fi 7, Marvell 10GbE

21.990.000 ₫
-44%
ASUS PRIME Z790-P WIFI-CSM Mainboard

ASUS PRIME Z790-P WIFI-CSM Mainboard

Giá gốc là: 8.990.000 ₫.Giá hiện tại là: 4.990.000 ₫.

Trang chủ

Danh mục

Tìm kiếm

Yêu thích

Yêu thích
