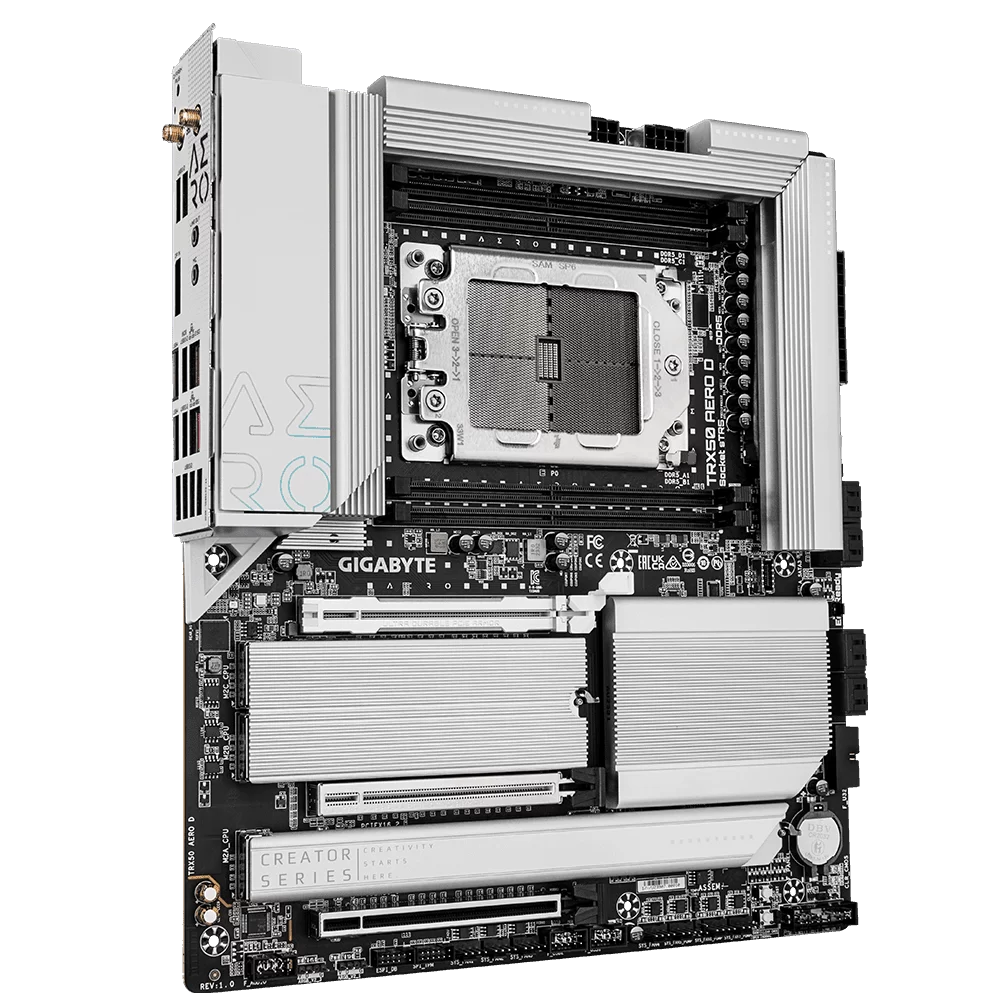

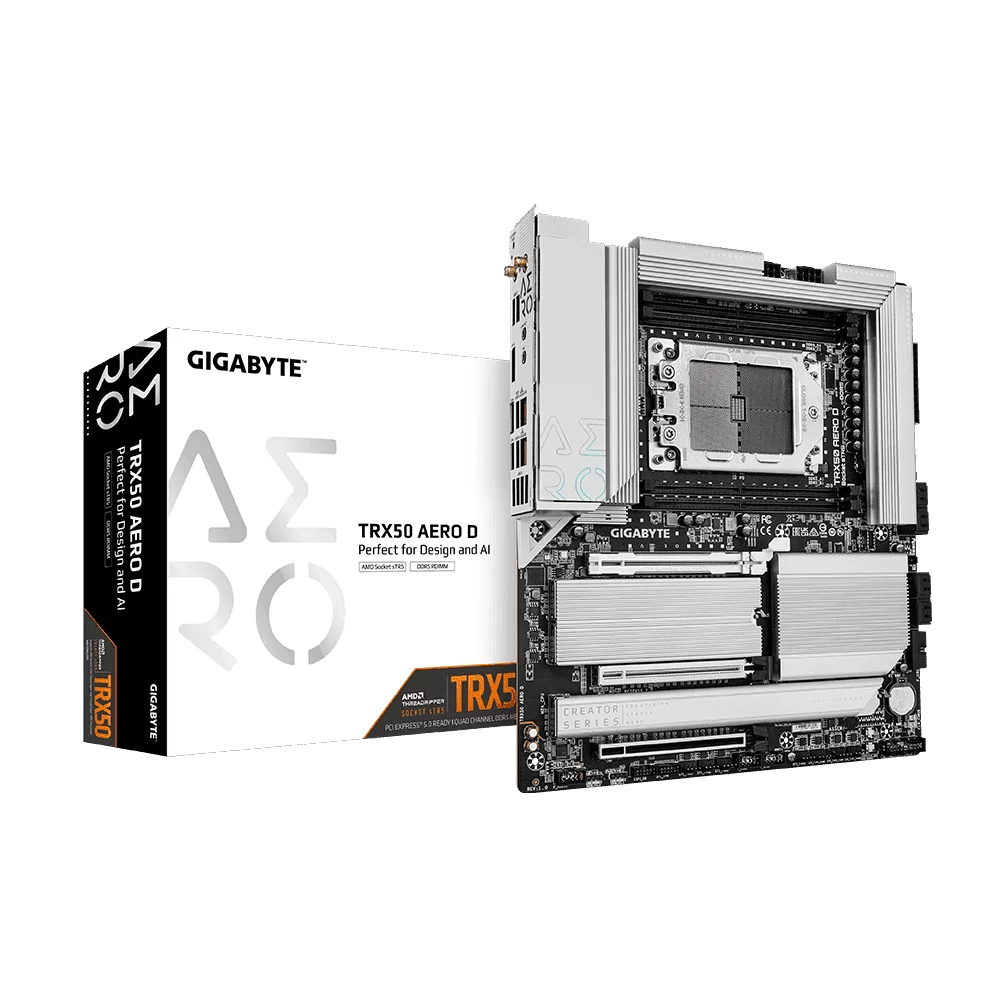

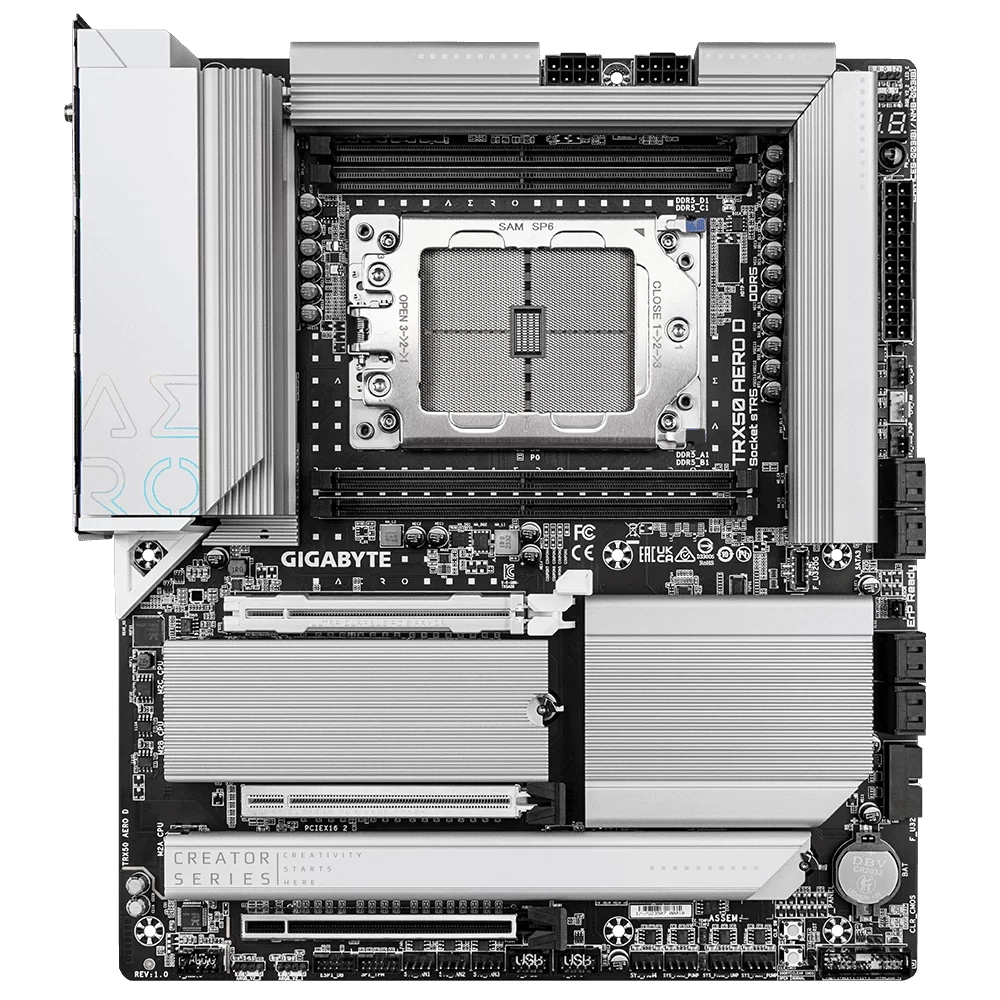

GIGABYTE TRX50 AERO D sTR5, E-ATX Mainboard – DDR5, PCIe 5.0 M.2, PCIe 5.0, USB4 Type-C, Wi-Fi 7, Marvell 10GbE

0.0 (0 đánh giá) | Đã bán 9
Cho phép đặt trước

21.990.000 ₫

Cho phép đặt hàng trước

Số lượng:
Thanh toán an toàn & bảo mật thông tin khách hàng

Cam kết hàng chính hãng

100% hàng chính hãng

Đổi trả dễ dàng

Trong 7 ngày

Bảo hành chính hãng

Giao hàng nhanh

Toàn quốc

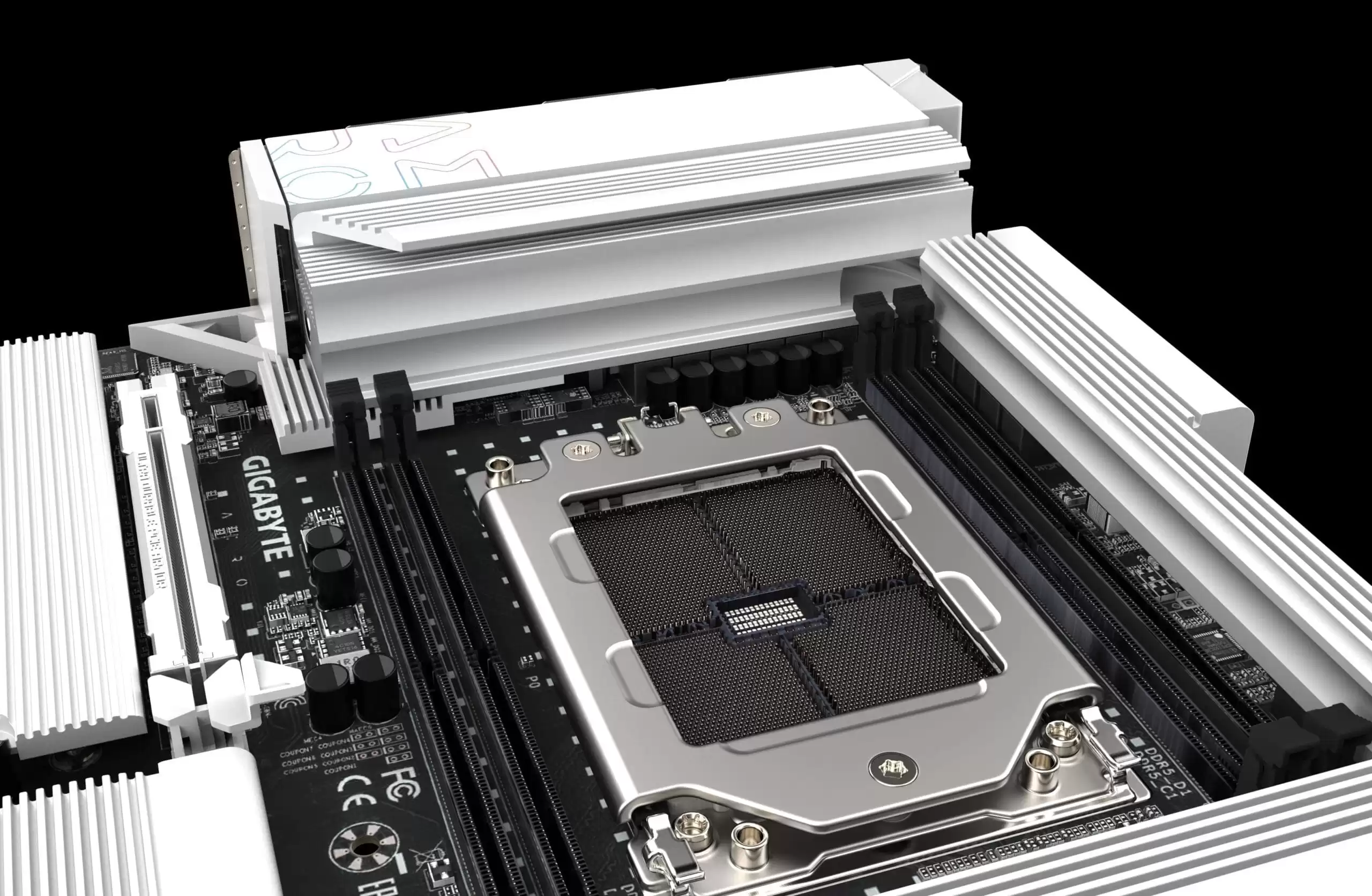

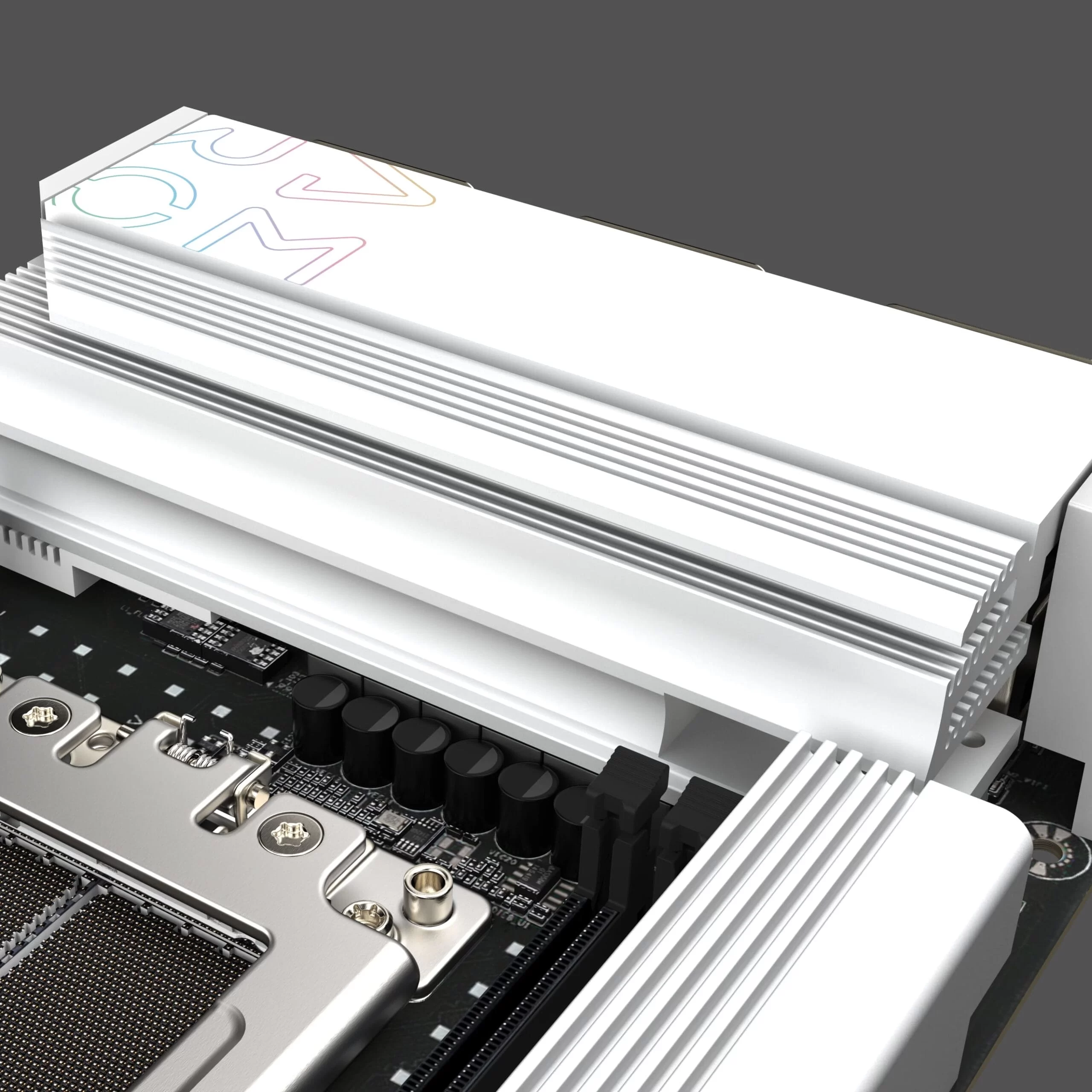

VRM

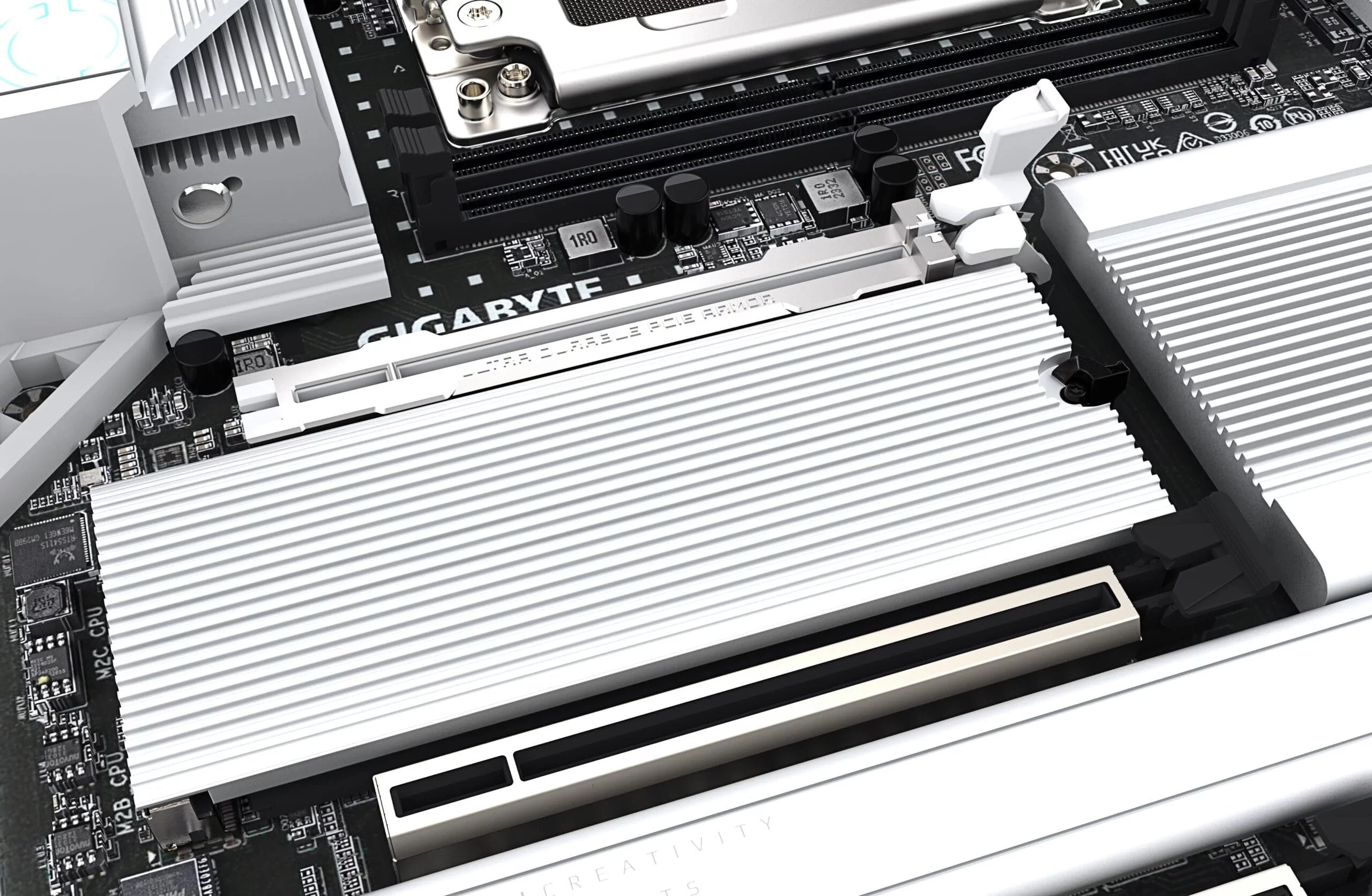

THERMAL

Advanced thermal

With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid.

ae

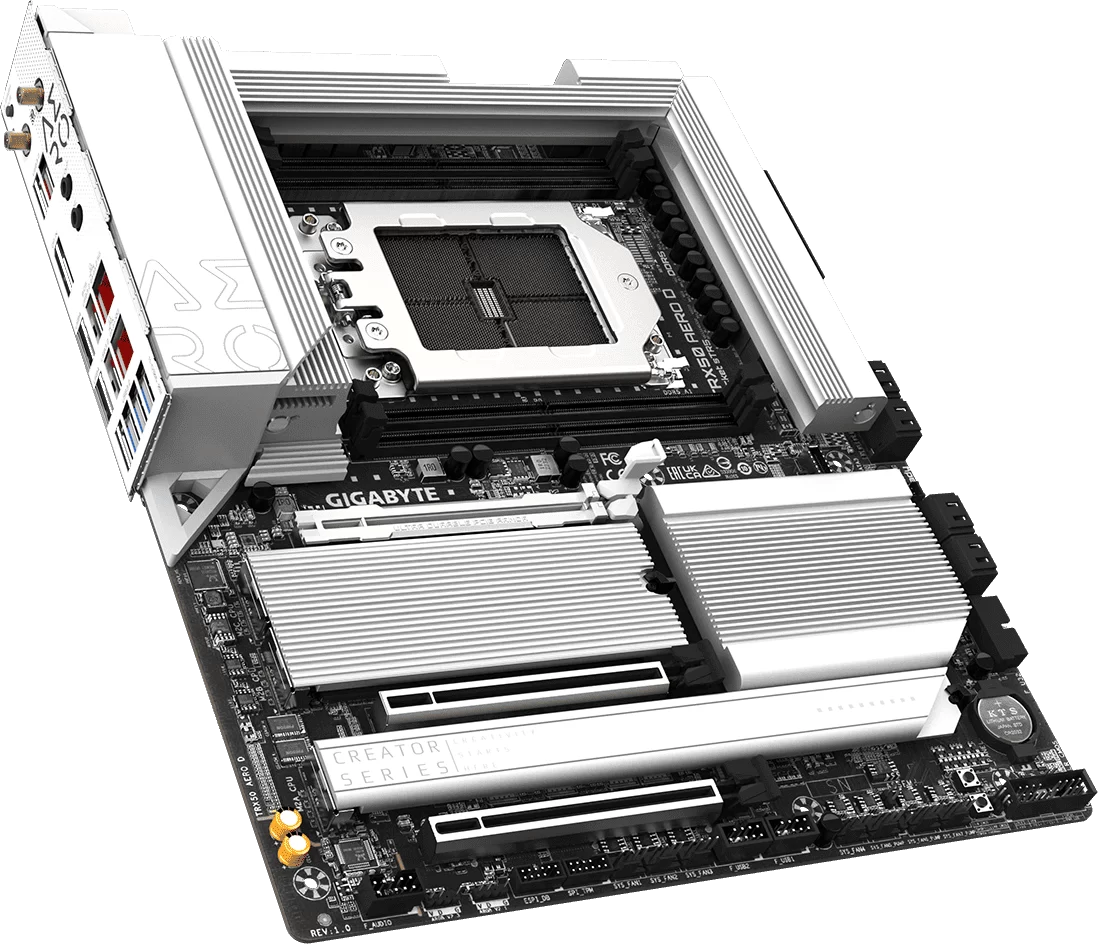

SCALABILITY

Ultimate scalability

Brings you the future-proofing capatiblity

Triple PCIe x 16 slots for Multi-GPU
Triple slot width design
4X M.2 slots with EZ-latch Click

Connectivity

Mega connectivity

Brings you the future-proofing capatiblity

Dual USB4 Type-C
Wi-Fi 7
Ultra-high Gain Antenna
Dual LAN 10G+2.5G
True Hi-Fi Music

ro

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

*For reference only; actual appearance may vary.

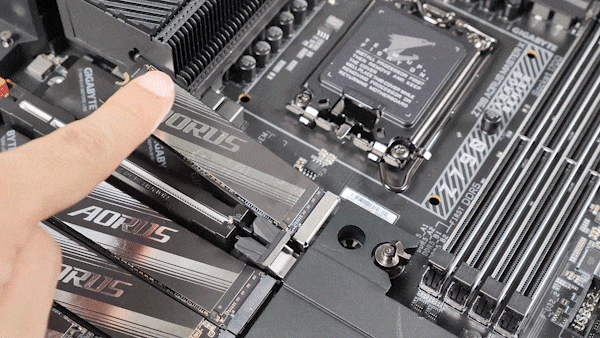

m.2 latch plus

M.2 EZ-Latch Plus

screwless installation for M.2 SSDs

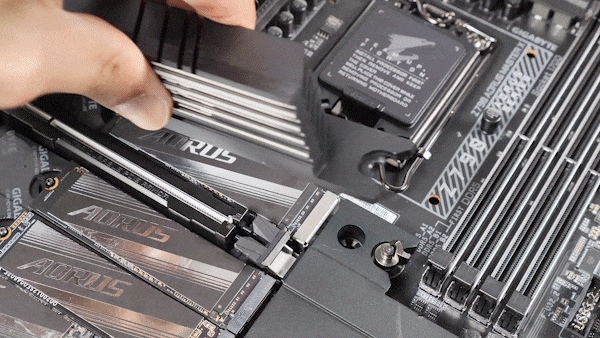

latch click

PCIe EZ-Latch

easy detachment for graphics cards

Ultra Durable™

Get everythingUD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.

PCIe UD Slot X
ic pcie ud slot blk

PCIe UD Slot X

The latest PCIe UD Slot X offers unprecedented strength, providing enhanced protection for your graphics card.

10X load-bearing capacity

Featuring a seamless, one-piece design that is screwed onto a dedicated backplate, the PCIe UD Slot X provides 10 times the load-bearing strength.

Inner Lining Rubber Strip

This rubber strip safeguards your graphics card’s PCB from potential scratches.

Zinc Alloy

The use of zinc alloy ensures effective electromagnetic shielding for high-speed signals.

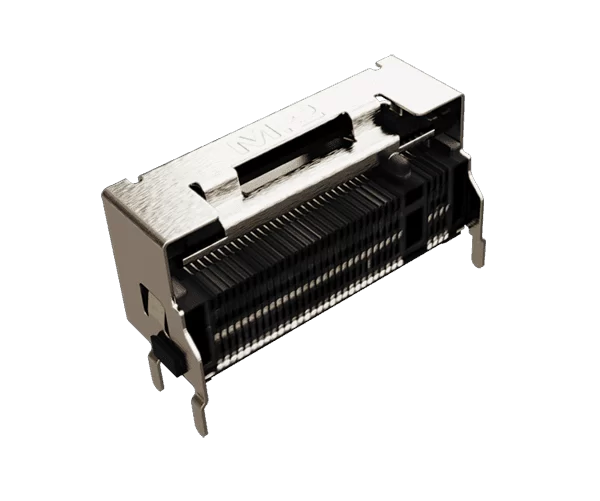

M2 UD Slot
ic memory ud slot blk

M.2 UD Slot PG5

The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizes signal integrity.

1.3X

stronger in X-Axis Strength Test

1.5X

stronger in Y-Axis Strength Test

Reduced Signal Degradation with SMD Technology

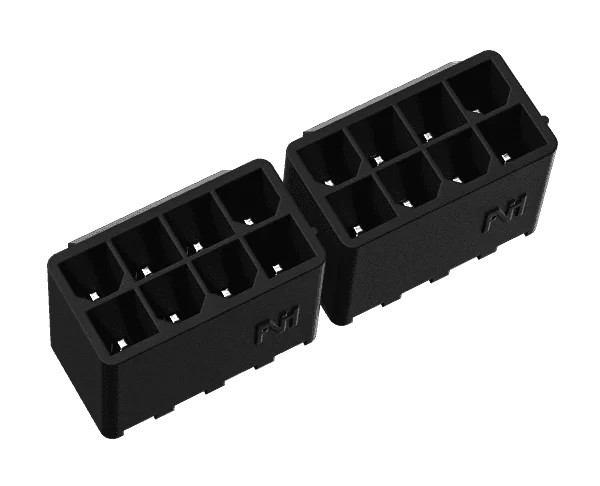

UD Power Connector
ic ud power connector. blkpng

UD Power Connector

The unique design provides better conductivity for power and better dissipation for the heat generated from it.

Solid Pins

provides superior conductivity & signal transmission, reducing metal loss from repeated plugging.

bg software scaled

Customization

Elevating Performance Together

TRX50 AERO D signifies our dedication to BIOS optimization. Through our community partnership, we’re making next-gen performance more user-friendly.

ic uc bios

UC BIOS

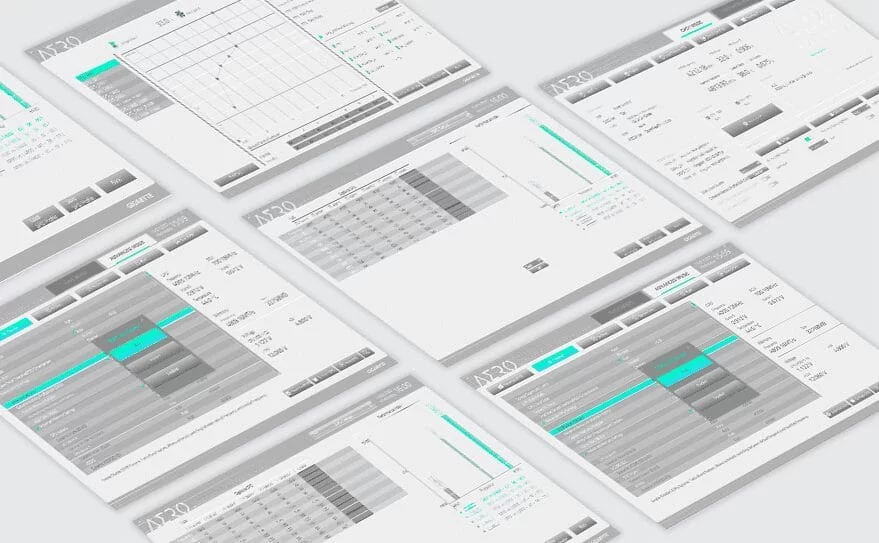

UC BIOS 2

UC BIOS

Redesigned as user-centered and provides intuitive performance tweakers.

Redesigned UI and UX

an intuitive operation interface with an aesthetically pleasing design.

Quick Access

customizable option slots for effortless access in Easy Mode.

logoonly hwinfo

HWiNFO

Exclusive
Partnership

introduces innovative features for computer enthusiasts and professionals

gcc

GIGABYTE Control Center

a unified software platform across a variety of GIGABYTE products.

Fusion

customize the RGB lighting on the motherboard or devices that connect to it.

AM5 1

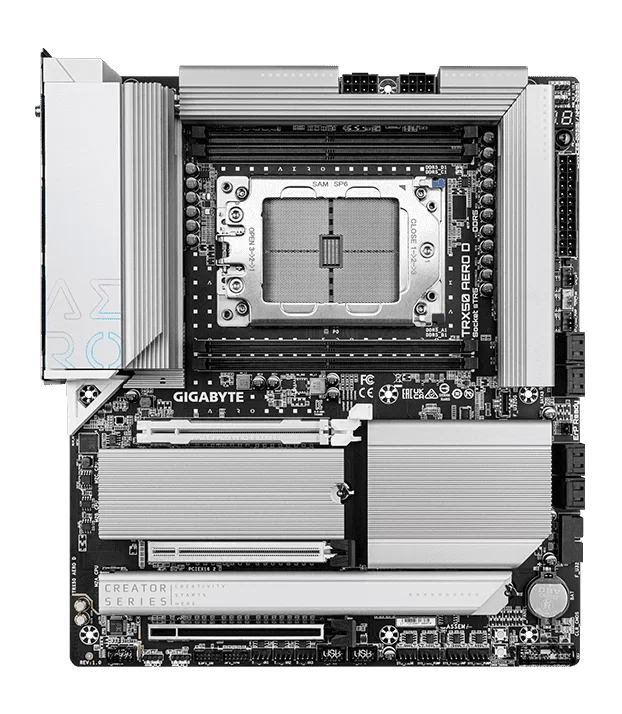

TRX50 AERO D

CPU

AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
(Go to GIGABYTE’s website for the latest CPU support list.)

Chipset

AMD TRX50

Bộ nhớ

Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Âm thanh

Realtek® ALC4080 CODEC (rear panel audio)
– Support for DTS:X® Ultra
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio)

LAN

Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)

Wireless Communication module

Qualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.

Khe cắm mở rộng

CPU:
– 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Giao diện lưu trữ

CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)

CPU+Chipset:
– 8 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:
– 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® JHL8540 USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel

Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header

CPU+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 4 x system fan headers
  6. 4 x system fan/water cooling pump headers
  7. 3 x addressable RGB Gen2 LED strip headers
  8. 1 x RGB LED strip header
  9. 4 x M.2 Socket 3 connectors
  10. 8 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x noise detection header
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-
  18. TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  19. 1 x power button
  20. 1 x Clear CMOS button
  21. 1 x reset button
  22. 1 x reset jumper
  23. 2 x temperature sensor headers
  24. 1 x Clear CMOS jumper

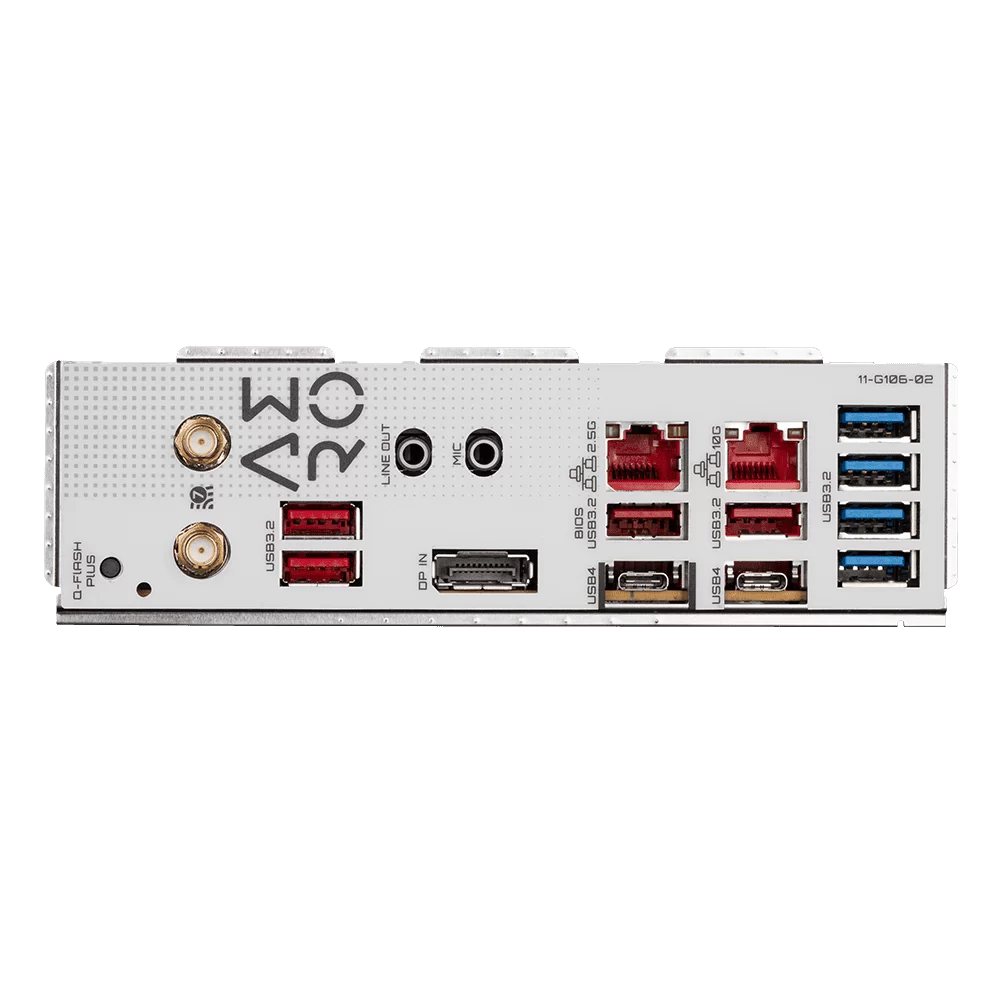

Kết nối bảng phía sau

  1. 1 x Q-Flash Plus button
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DisplayPort In port
  4. 1 x USB4® USB Type-C® port (DisplayPort)
  5. 1 x USB4® USB Type-C® port
  6. 4 x USB 3.2 Gen 2 Type-A ports (red)
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x RJ-45 ports
  9. 2 x audio jacks

Điều khiển I/O

iTE® I/O Controller Chip

Theo dõi phần cứng

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    Noise detection

BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

  1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus

Gói phần mềm

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Hệ điều hành

  1. Support for Windows 11 64-bit

Form Factor

E-ATX Form Factor; 30.5cm x 26.4cm



Bảo hành 3 năm
