NZXT H9 Elite All White Case – Matte White

Details

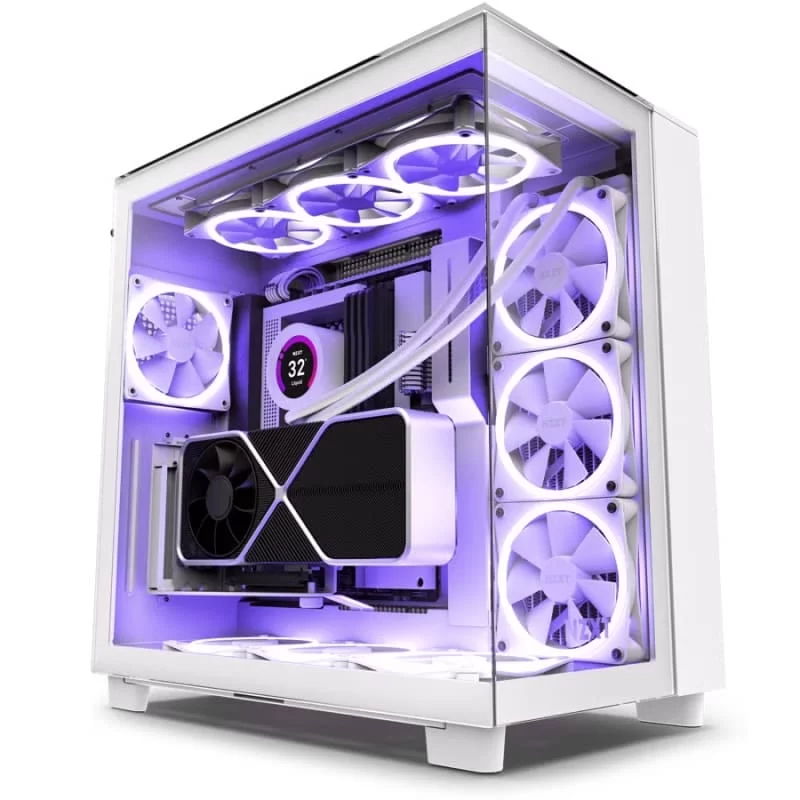

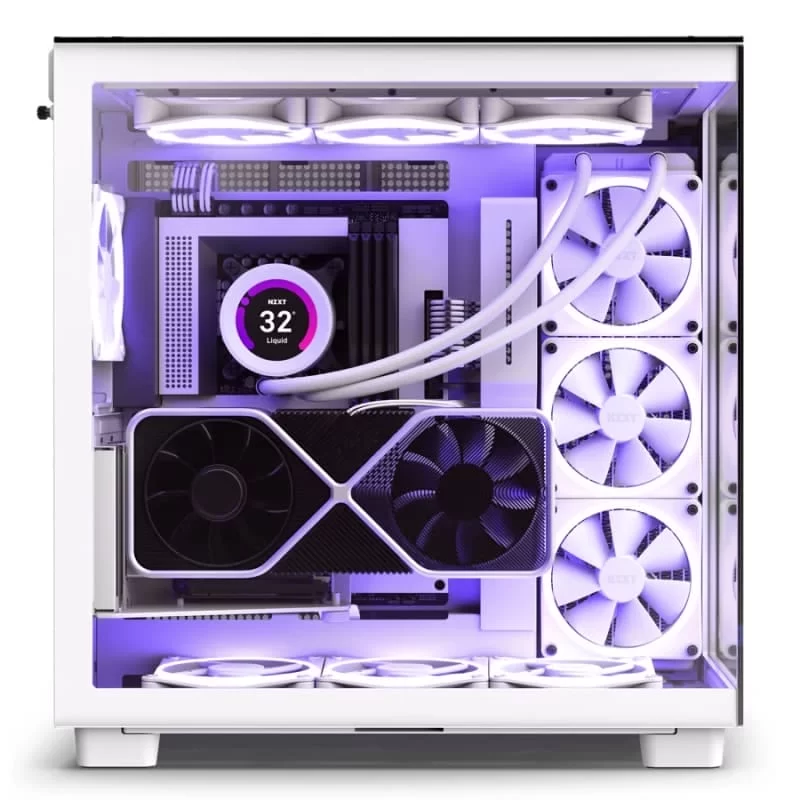

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.

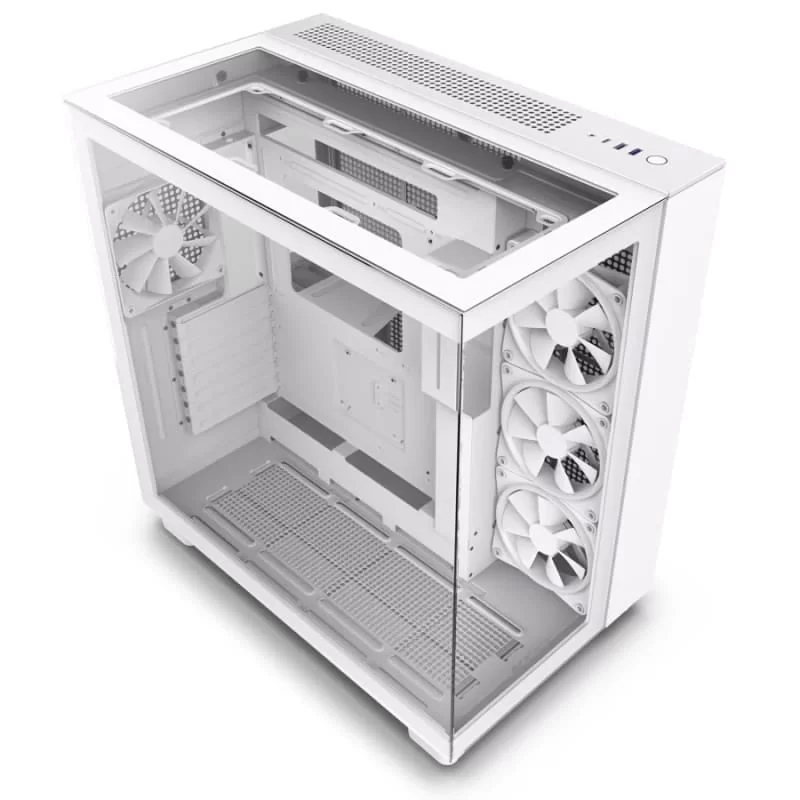

• • Unique uninterrupted glass panel for a clear view of the interior

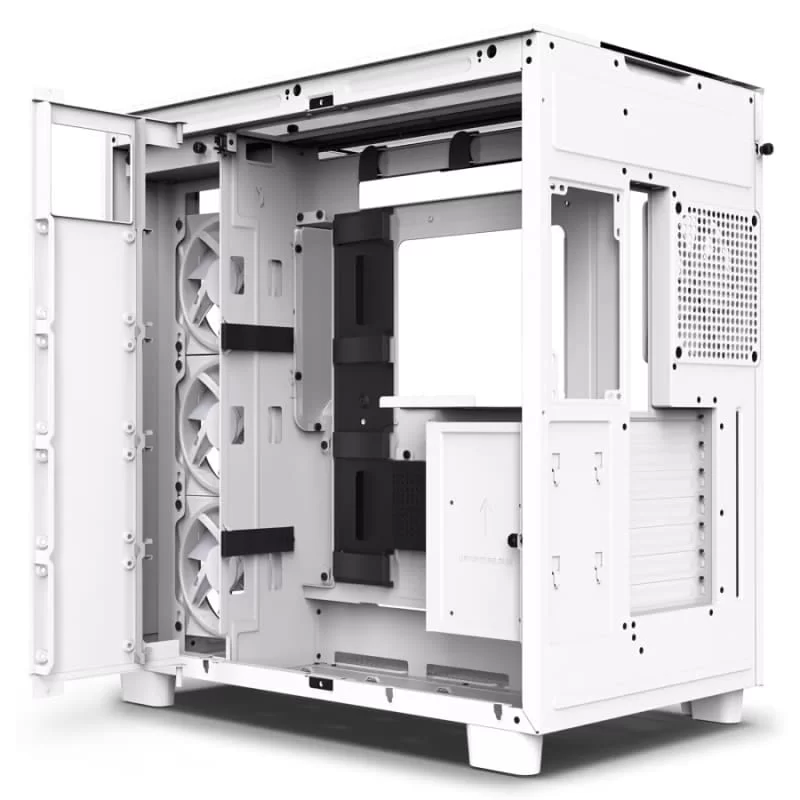

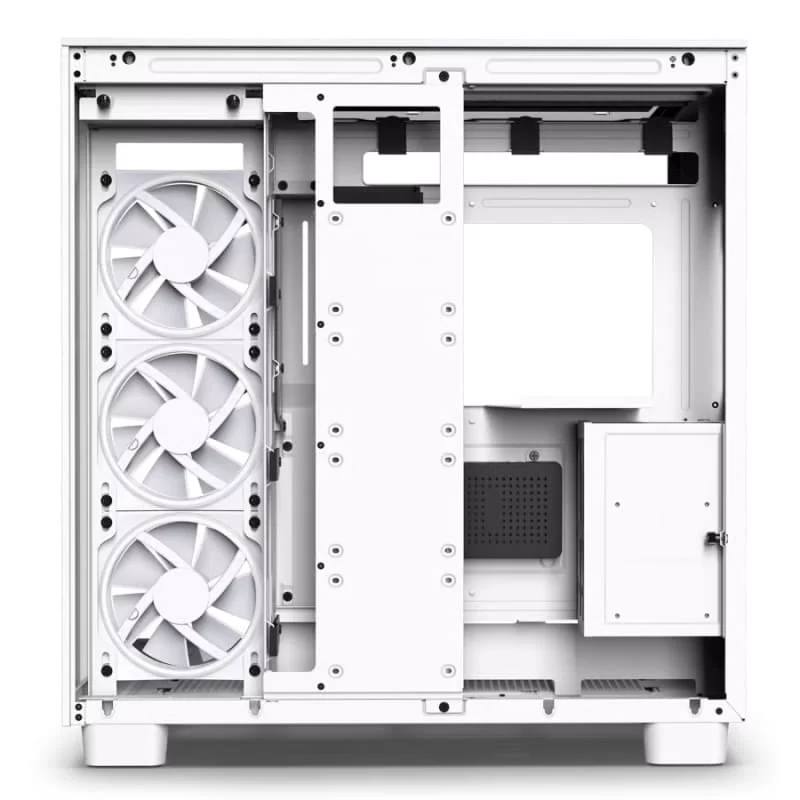

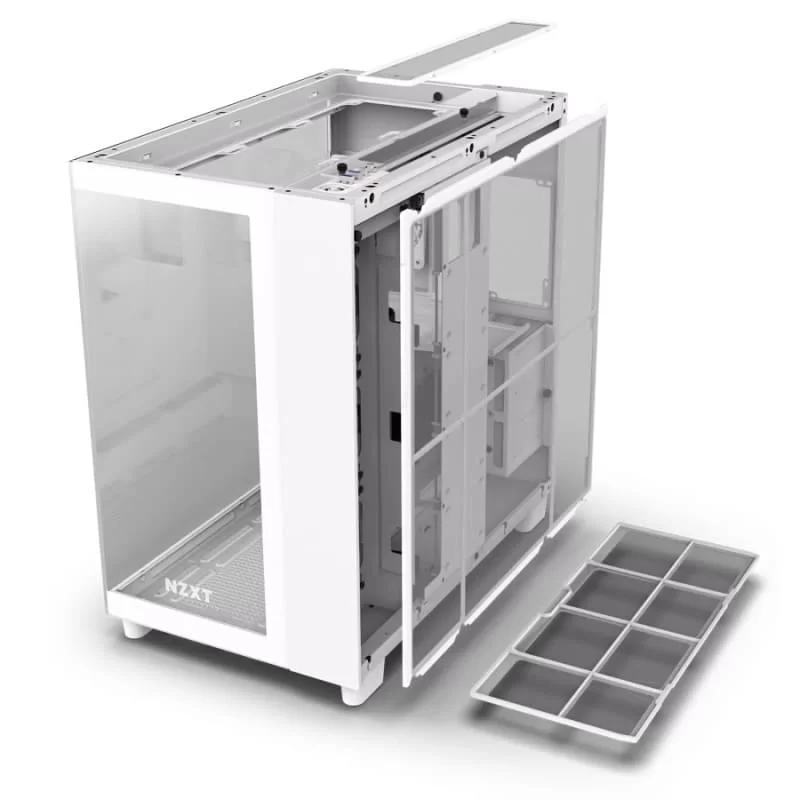

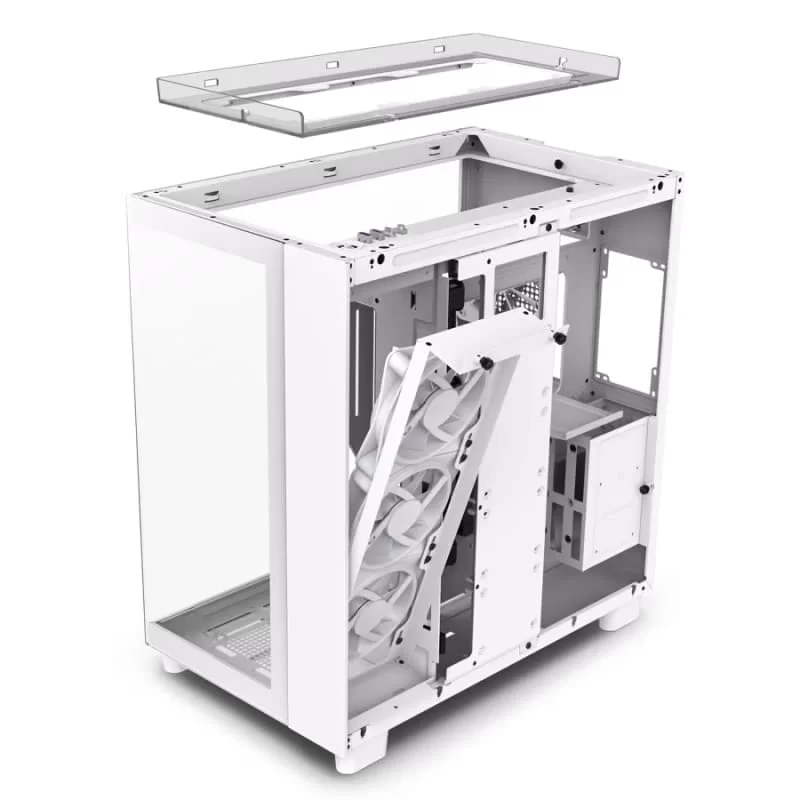

  • Intuitive cable management and dual chamber design

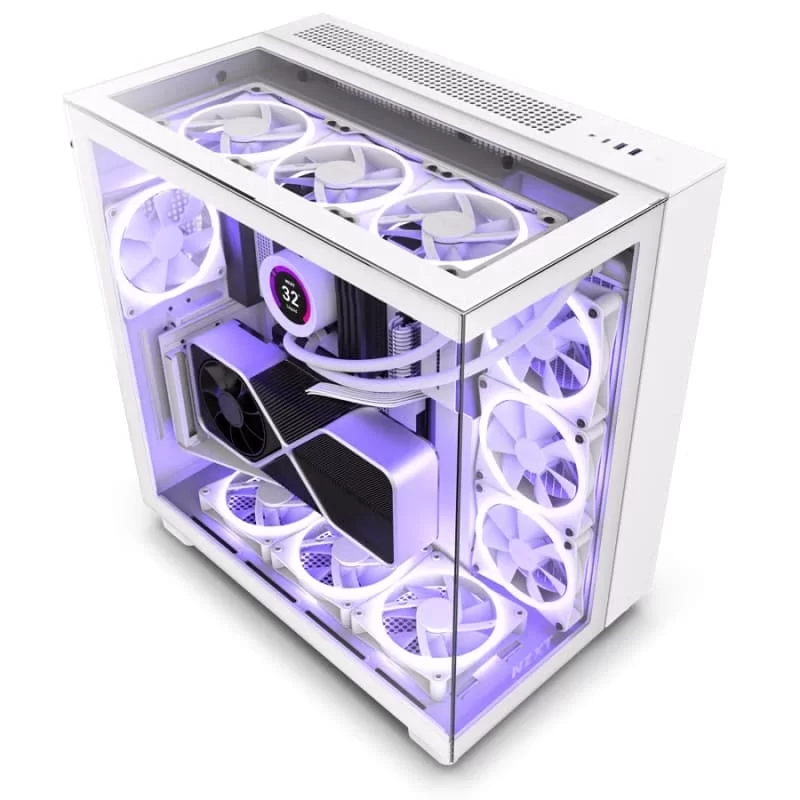

  • Room for ten fans or three 360mm Radiators

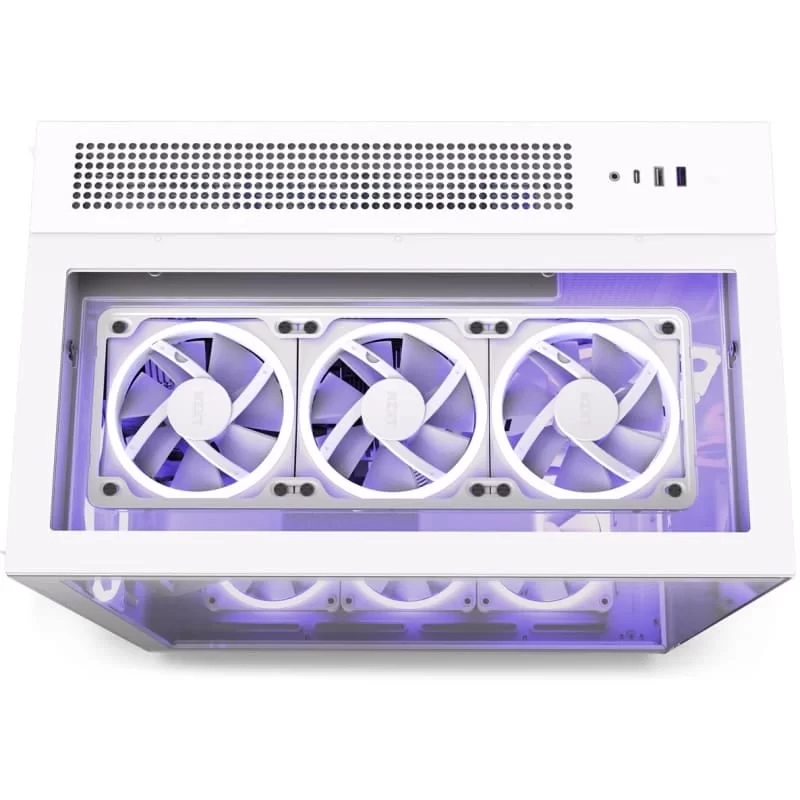

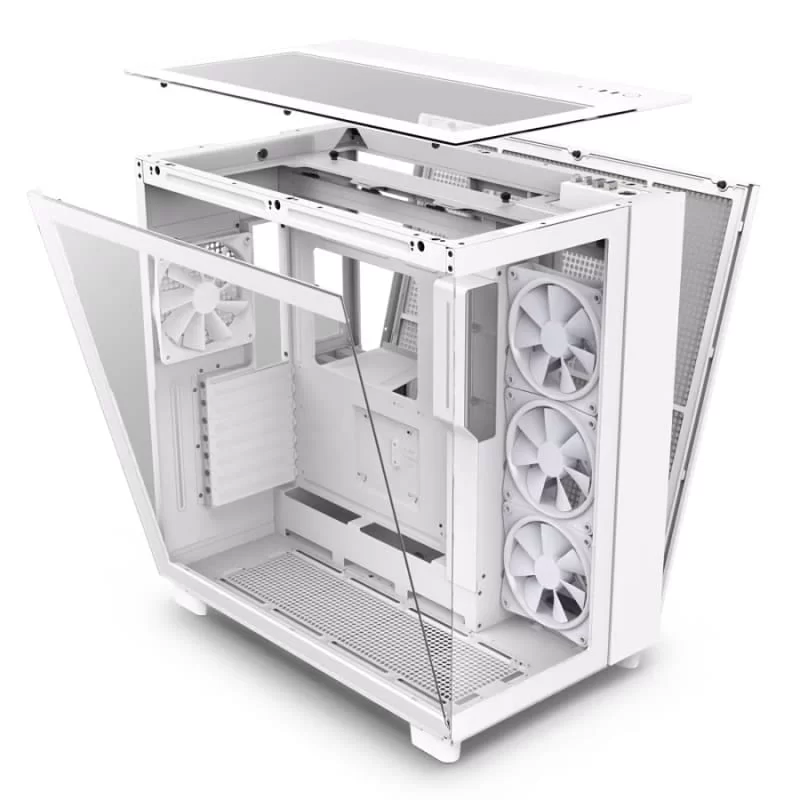

  • Tempered glass top panel and included RGB & Fan Controller
  • Direct airflow to the GPU for handling high-powered components
  • Enhanced experience with other products from the NZXT ecosystem

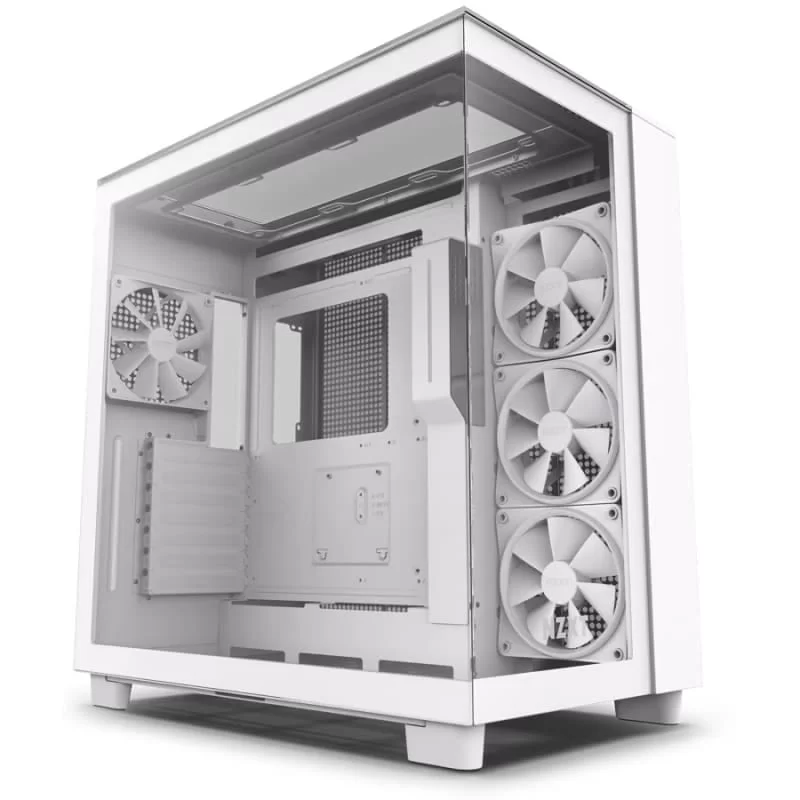

  • Includes three F Series 120mm RGB Duo Fans and one F120Q Fan

Inside the Box

• H9 Elite Case1
• Front I/O split cables1
• 120mm RGB Duo Fan3
• 120mm Quiet Airflow Fan (Case Version)1
• RGB and Fan Controller1
• Installation Accessories1
• Manual

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

• Height:495mm (With Feet)
• Width:290mm
• Depth:466mm
• Weight:13.1 kg

COMPATIBILITY & CLEARANCE

• CPU Cooler Clearance:Up to 165mm
• GPU Clearance:Up to 435mm
• PSU Clearance:200mm
• Cable Management:91mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2
• USB 3.2 Gen 2 Type-C:1
• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7
• Vertical:0

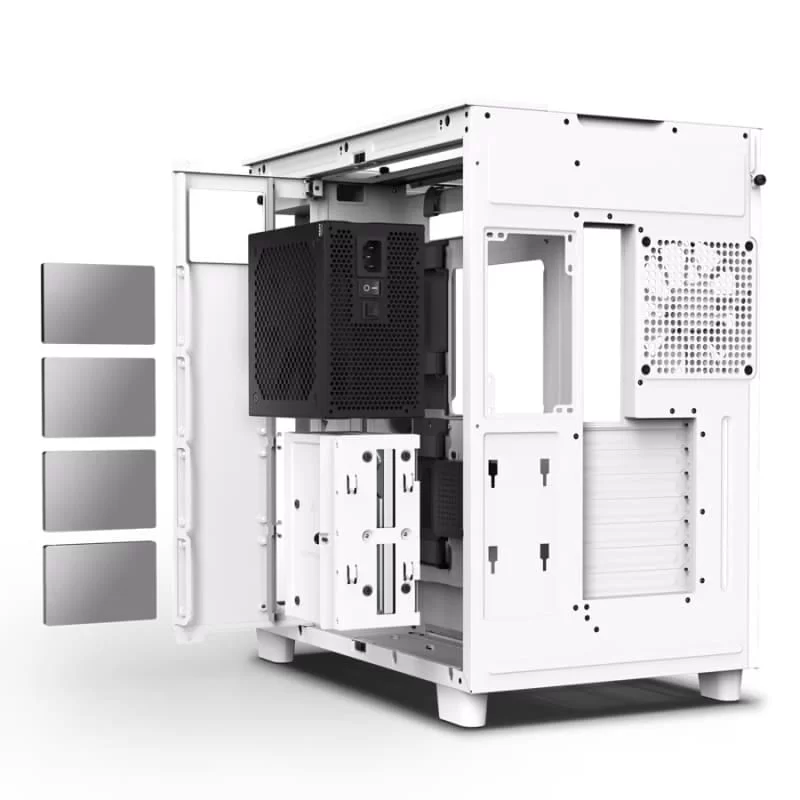

DRIVE BAYS

• 2.5″:4+2
• 3.5″:2

FAN SUPPORT

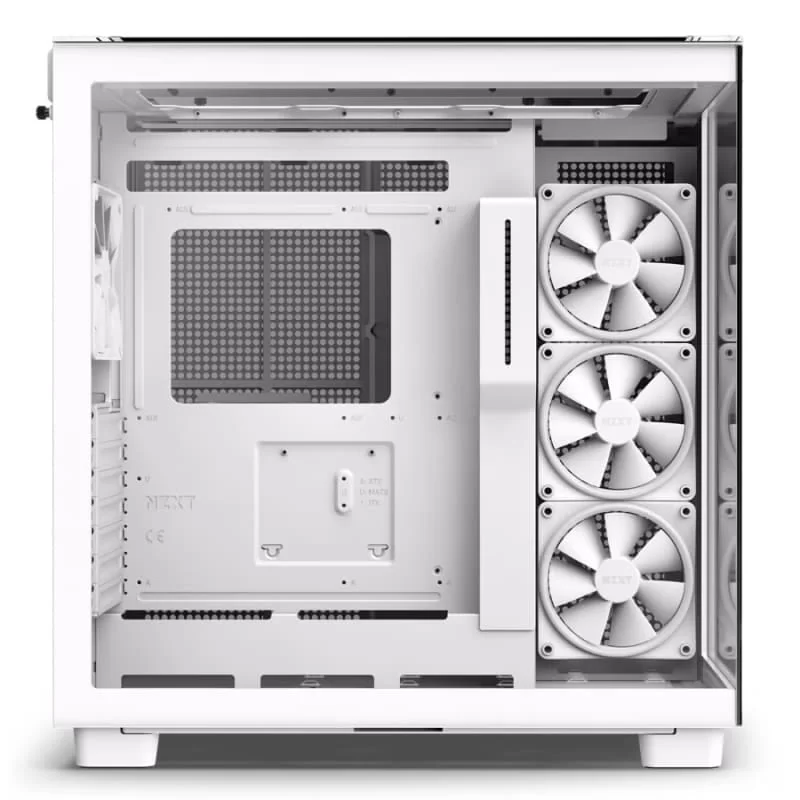

• Side:3 x 120mm
• Top:3 x 120mm / 2 x 140mm
• Bottom:3 x 120mm / 2 x 140mm
• Rear:1 x 120mm
• Filters:All Air Intakes

RADIATOR SUPPORT

• Side:Up to 360mm
• Top:Up to 360mm
• Bottom:Up to 360mm
• Rear:Up to 120mm

FAN SPECS

• Model:F120Q (Case Version)
• Speed:1200 ± 240RPM
• Airflow:62.18 CFM
• Static:1.05 mm – H2O
• Noise:25.1 dBA
• Fan Connector:3-pin

FAN SPECS

• Model:F120RGB Duo
• Speed:500 ± 1800RPM
• Airflow:48.58 CFM
• Static:2.42mm – H2O
• Noise:29 dBA
• Fan Connector:4-pin

GENERAL

• Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
• UPC:810074842525 (White) / 810074842518 (Black)
• EAN:5056547202440 (White) / 5056547202433 (Black)
