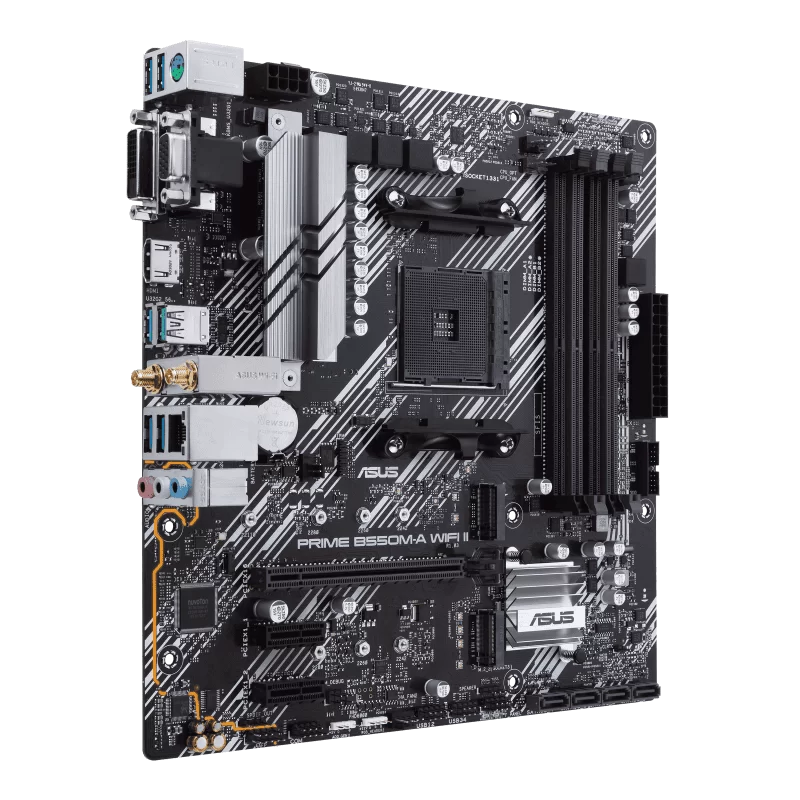

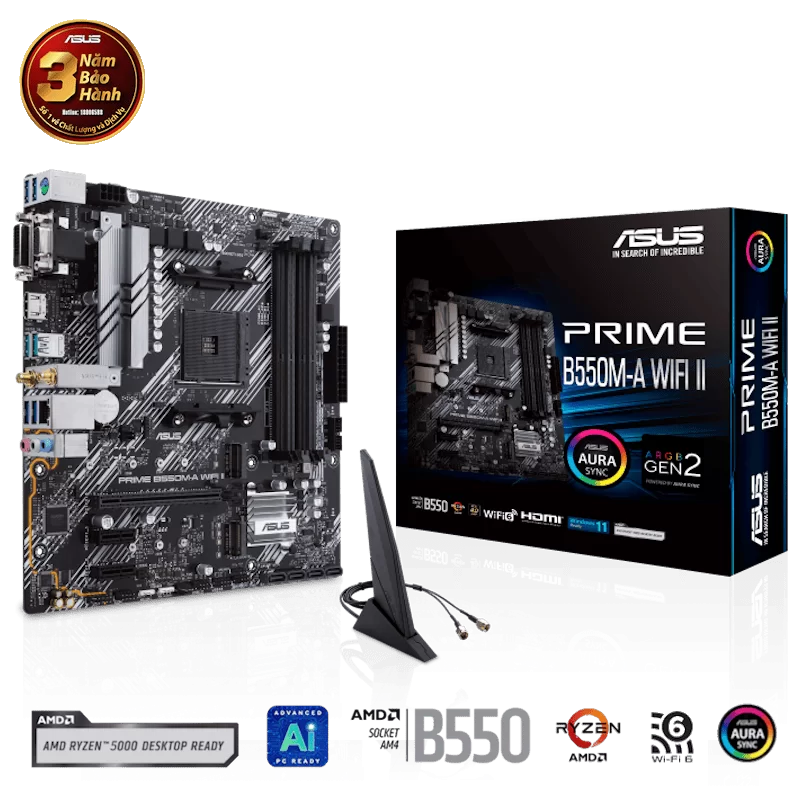

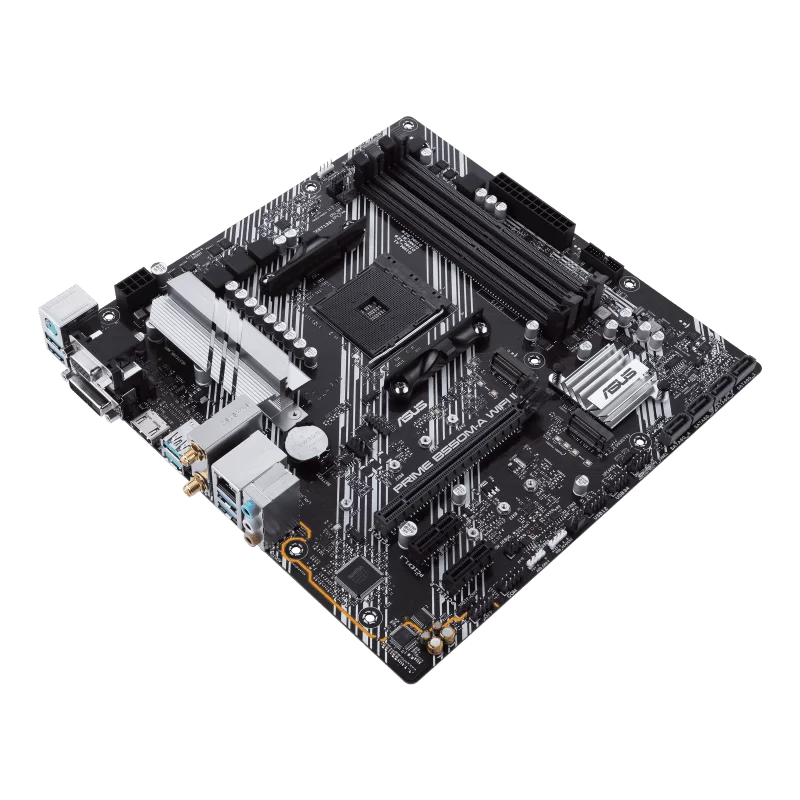

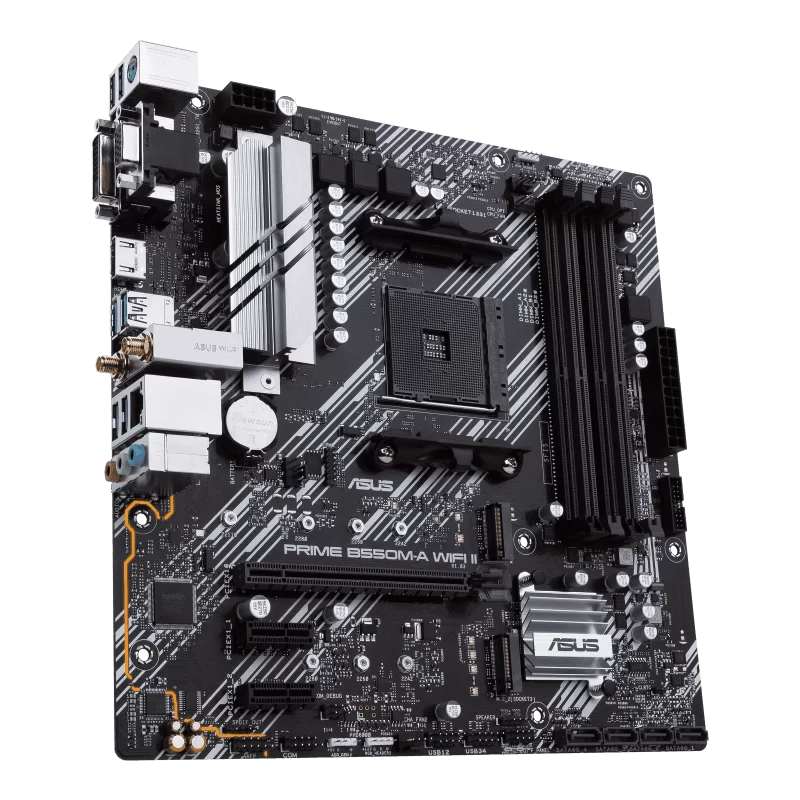

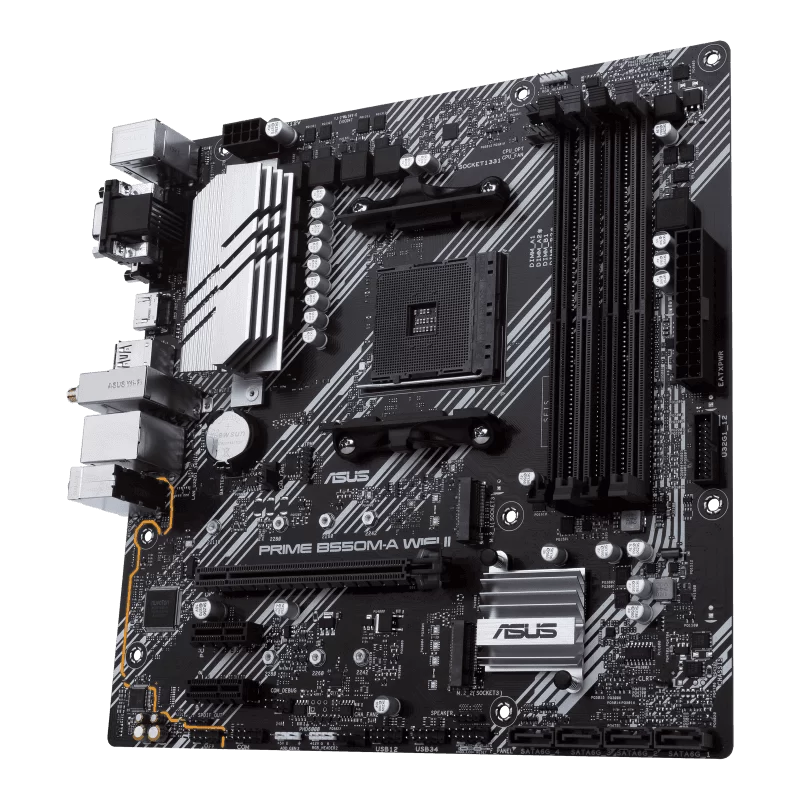

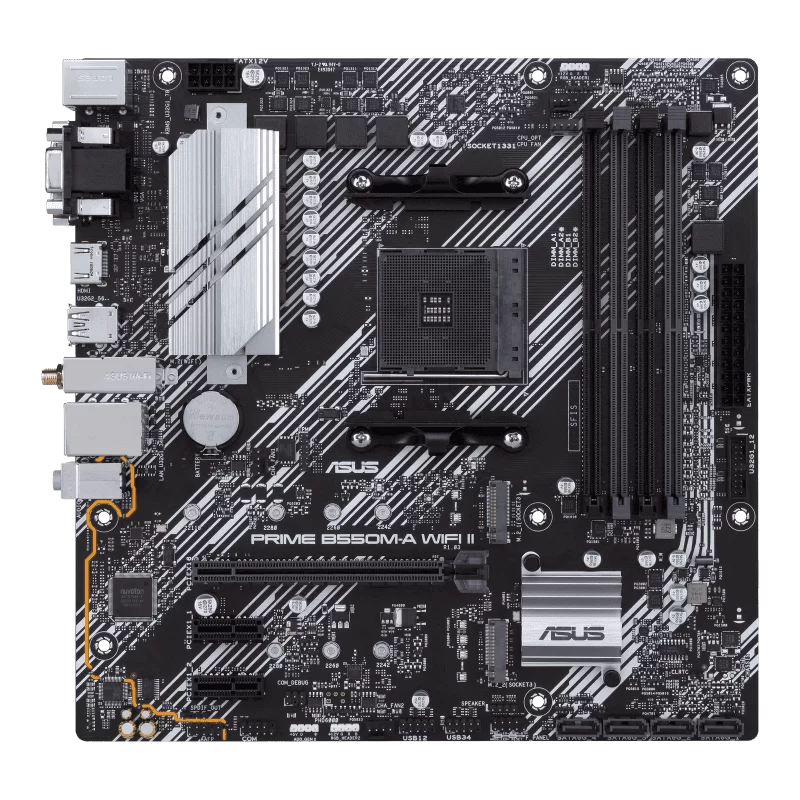

ASUS PRIME B550M-A WIFI II Mainboard

Memory

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,ECC Memory (ECC mode) support varies by CPU.,Dual Channel Memory Architecture

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 slots

Storage

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– LED-illuminated audio trace path design
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Port

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Special Features

ASUS 5X PROTECTION III

– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM
– Q-Slot

ASUS Thermal Solution

– VRM heatsink design

AURA Sync

– AURA RGB headers
– Addressable Gen 2 header

Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
– EZ update
– Lighting Control
ASUS CPU-Z
AI Charger
DAEMON Tools
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

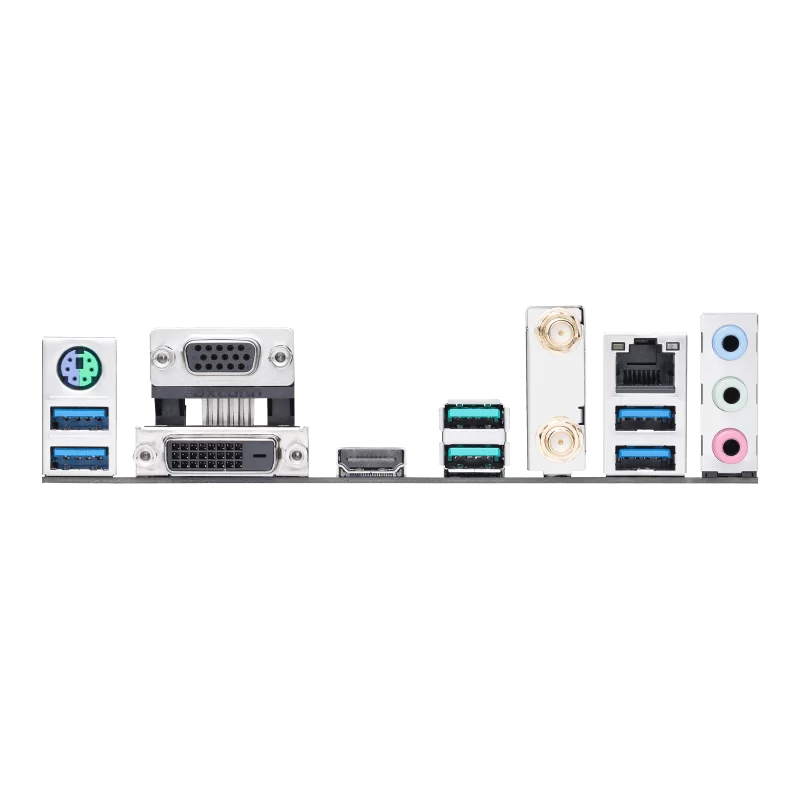

Back I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

BIOS

256 Mb Flash ROM, UEFI AMI BIOS
